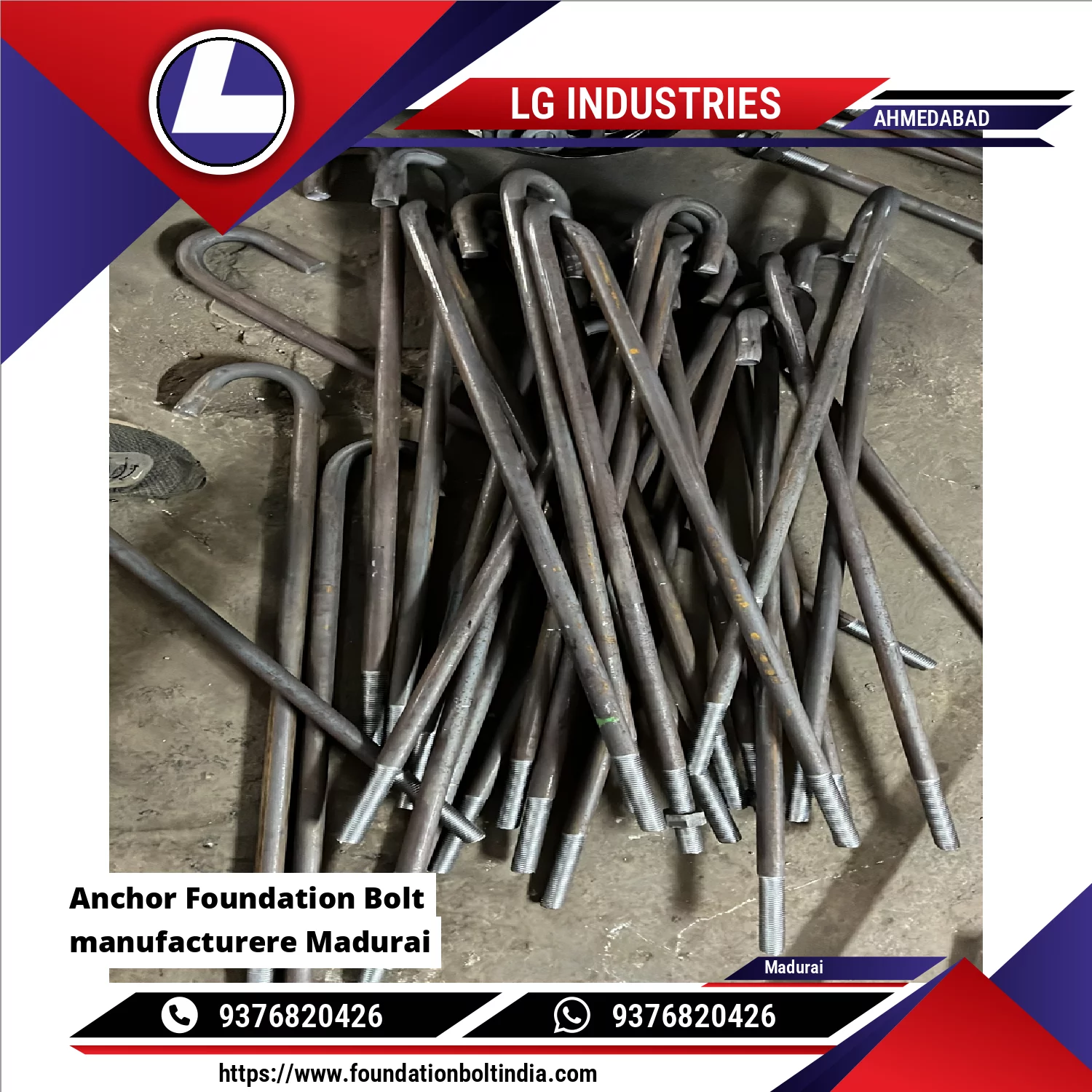

Anchor Foundation Bolt LG Industries manufactures is a fastening component used to secure steel structures, machinery, and equipment to concrete foundations. It transfers load safely from the structure to the RCC foundation and resists tension, shear, and vibration forces.
Types of Anchor Foundation Bolts
J Type Anchor Bolt – Common for columns, tanks, and towers
L Type Anchor Bolt – Used where moderate load is involved
Plate / Headed Anchor Bolt – For heavy-duty and high uplift load
Double Plate Anchor Bolt – Extra holding strength for large structures
Stiffener Anchor Bolt – Designed for high vibration and dynamic load
Material & Finish
Material: Mild Steel (MS), High Tensile (8.8 / 10.9), Stainless Steel
Finish: Black, Zinc Plated, Hot Dip Galvanized (HDG) for outdoor use
Typical Specifications
Diameter: 12 mm to 56 mm
Length: 300 mm to 2000 mm
Thread: Metric (IS / DIN standard
Accessories: Nut, Washer, Template Plate (optional)
MS Anchor Foundation Bolts produced By LG Industries (also Called Mild Steel Foundation Bolts / Anchor Bolts) Are Heavy-duty Engineered Fasteners Made From Mild Steel (MS) Designed To Securely Anchor Structures, Machinery, And Base Plates To Concrete Foundations. These Bolts Are Embedded In Concrete During Casting, With The Threaded Portion Left Protruding Above The Surface To Attach Structural Members Using Nuts And Washers.Applications: MS Anchor Foundation Bolts Are Widely Used In Continue
1. J Type Foundation Bolt Most Widely Used For Overhead And Elevated Water Tanks. The Curved End Provides Strong Anchorage Inside Concrete. Suitable For RCC Pedestals And Steel Staging.2. L Type Foundation Bolt Used For Small To Medium Tanks. Easier To Install And Cost-effective Where Loads Are Moderate.3. Anchor Foundation Bolt (Plate / Nut Type) Used In Large Capacity Water Tanks. A Plate Or Nut At The Bottom Improves Pull-out Resistance.4. Double Plate Foundation Bolt Recommended For He Continue
LG Industries Manufactures Anchor Bolts. Zinc Acts As A Sacrificial Layer, Protecting Steel Even If The Surface Gets Scratched.Key Benefits:Excellent Corrosion ResistanceLonger Service LifeLower Maintenance CostSuitable For Outdoor & Industrial EnvironmentsCommon Types Available With Zinc CoatingJ Type Anchor Foundation BoltL Type Anchor BoltU Type Foundation BoltStraight Anchor Bolt With Nut & WasherPlate Welded Anchor BoltDouble Plate Foundation BoltSleeve / P Continue
