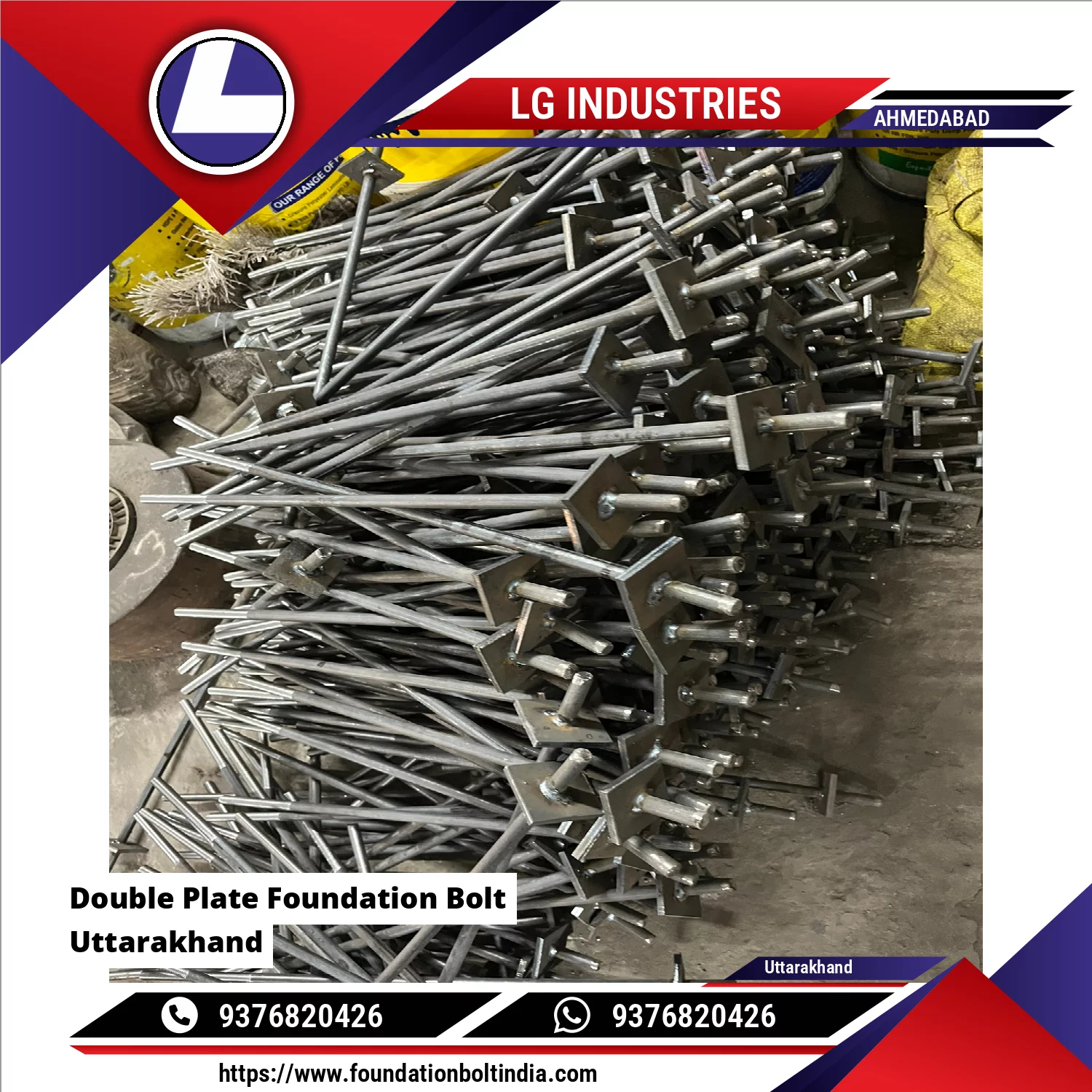

LG Industries manufactures Double Plate Foundation Bolt is a heavy-duty anchoring fastener used to secure steel structures to concrete foundations where high tensile and pull-out strength is required. It consists of a threaded bolt with two steel anchor plates welded at the bottom end, providing enhanced load distribution and superior resistance against uplift and vibration.
Double plate foundation bolts are commonly used in:
Power plants and thermal plants
Transmission towers and substations
Wind mill foundations
Heavy industrial machinery
PEB and structural steel columns
⚙️ Design & Construction
Bolt Type: Fully or partially threaded rod
Anchorage: Two MS plates welded crosswise or parallel
Plate Shape: Square / rectangular / circular
Installation Method: Cast-in-place during concrete pouring
Material: Mild Steel (MS) / High Tensile Steel
Grades: IS 2062, 4.6, 8.8 or as specified
Surface Finish: Black, Zinc Plated, Hot Dip Galvanized (HDG)
Double Plate Foundation Bolts Manufactured By LG Industries Are High-strength Anchoring Fasteners Designed To Provide Maximum Stability And Load-bearing Support For Heavy Structures And Industrial Machinery. These Bolts Feature Two Welded Steel Plates At The Anchoring End, Which Create A Strong Mechanical Grip Inside Concrete Foundations, Ensuring Excellent Resistance Against Pull-out Forces And Structural Movement.LG Industries Is A Trusted Foundation Bolt Manufacturer, Supplier, Wholesaler, Continue
A Double Plate Foundation Bolt Consists Of A Steel Rod With Threaded Top And Two Square Or Rectangular Plates Welded At The Bottom Portion. These Plates Act As Anchors Inside Concrete, Preventing Movement Or Pull-out Under Heavy Loads Or Vibrations.Main Features:Material: Mild Steel, High-tensile Steel, Or Alloy SteelPlates: Two MS Plates Welded At Specified SpacingThread: Metric Threading With Nut & WasherFinish: Black, Zinc-plated, Or Hot-dip GalvanizedGrades: 4.6, 5.6, 8.8, 10 Continue
Double Plate Foundation Bolts Are Specially Designed Anchor Bolts Used To Provide Superior Holding Strength And Stability In Concrete Foundations. These Bolts Feature Two Welded Anchor Plates At The Embedded End, Which Significantly Increase Pull-out Resistance And Load Distribution Within The Concrete.Manufactured From Mild Steel Or High Tensile Steel, Double Plate Foundation Bolts Are Ideal For Applications Requiring High Structural Safety And Vibration Resistance. The Plates Are Precision-w Continue
