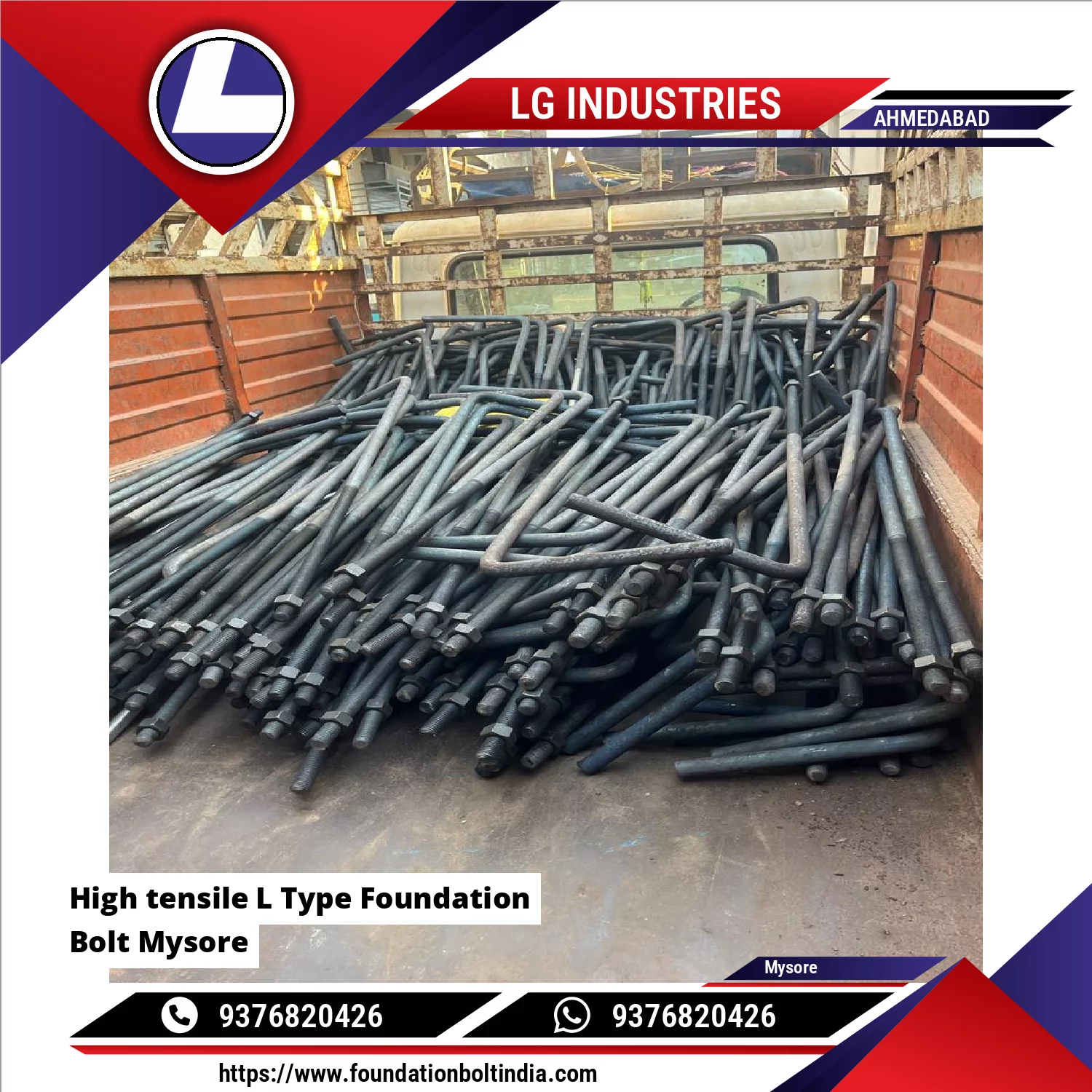

Lg industries manufactures High Tensile L Type Foundation Bolts are heavy-duty anchor bolts designed for secure anchoring of structural steel, heavy machinery, and crane foundations. The bolt features a straight threaded shank with one end bent at 90° in an “L” shape, which provides strong mechanical anchorage when cast into concrete. Using high tensile steel makes these bolts suitable for applications involving high loads, vibration, and dynamic forces.
Construction & Design
The L-shaped bent end is embedded inside the concrete foundation and resists pull-out by mechanical interlock, while the threaded end projects above the concrete for tightening with heavy hex nuts and washers. High tensile L Type bolts are preferred where greater strength and reduced bolt size are required compared to mild steel bolts.
Material Grade
High Tensile Steel as per IS 1367
ASTM F1554 Grade 55 / 105 (on request)
EN8 / EN19 (as per design requirement)
Surface Finish
Black / Self Finish
Hot Dip Galvanized (HDG) – recommended for outdoor & crane foundations
Zinc Plated / Epoxy Coated (optional)
Key Features
High tensile and yield strength
Strong resistance to uplift and shear loads
Reliable anchorage due to L-bend embedment
Long service life with corrosion protection
Cost-effective alternative to plate welded bolts for medium-heavy loads
LG Industries Manufactures L Type Foundation Bolt Is A Cast-in Anchor Bolt Fabricated From Mild Steel (MS) Or High-strength Steel, Used To Fasten Structural Members Or Equipment To Concrete Foundations. The Bolt Has An L Shaped Bent End At The Embedded Portion, Which Provides Effective Mechanical Anchorage Within The Concrete.The L Bend Resists Pull-out And Uplift ForcesInstalled Before Concrete Pouring And Positioned Accurately Using A Template Continue
L Type Foundation Bolt (also Called An L Anchor Bolt) Is A Type Of Anchor Bolt Used In Concrete Foundations To Secure Structural Steel, Columns, Base Plates, And Heavy Equipment. Its Unique Shape Gives It Strong Pull-out Resistance When Embedded In Concrete. LG Industries Produces L Type Foundation BoltL Shaped Bend At One End — Looks Like The Letter “L”The Short Leg Is Embedded Into ConcreteThe Long Leg Projects Above The Concrete SurfaceThreaded Portion On The Project Continue
L-Type Foundation Bolt Manufactured By LG Industries is A Commonly Used Anchoring Bolt Designed To Fix Steel Structures, Columns, And Equipment To Concrete Foundations. It Has An L-shaped Bent End At The Bottom, Which Provides Secure Anchorage Within The Concrete And Prevents Pull-out.Construction DetailsThreaded Straight Portion: For Fastening With Nuts And WashersL-Shaped Bent End: Acts As An Anchor Inside The ConcreteMaterial: Mild Steel Or High-tensile SteelFinish: Black, Zinc Continue
