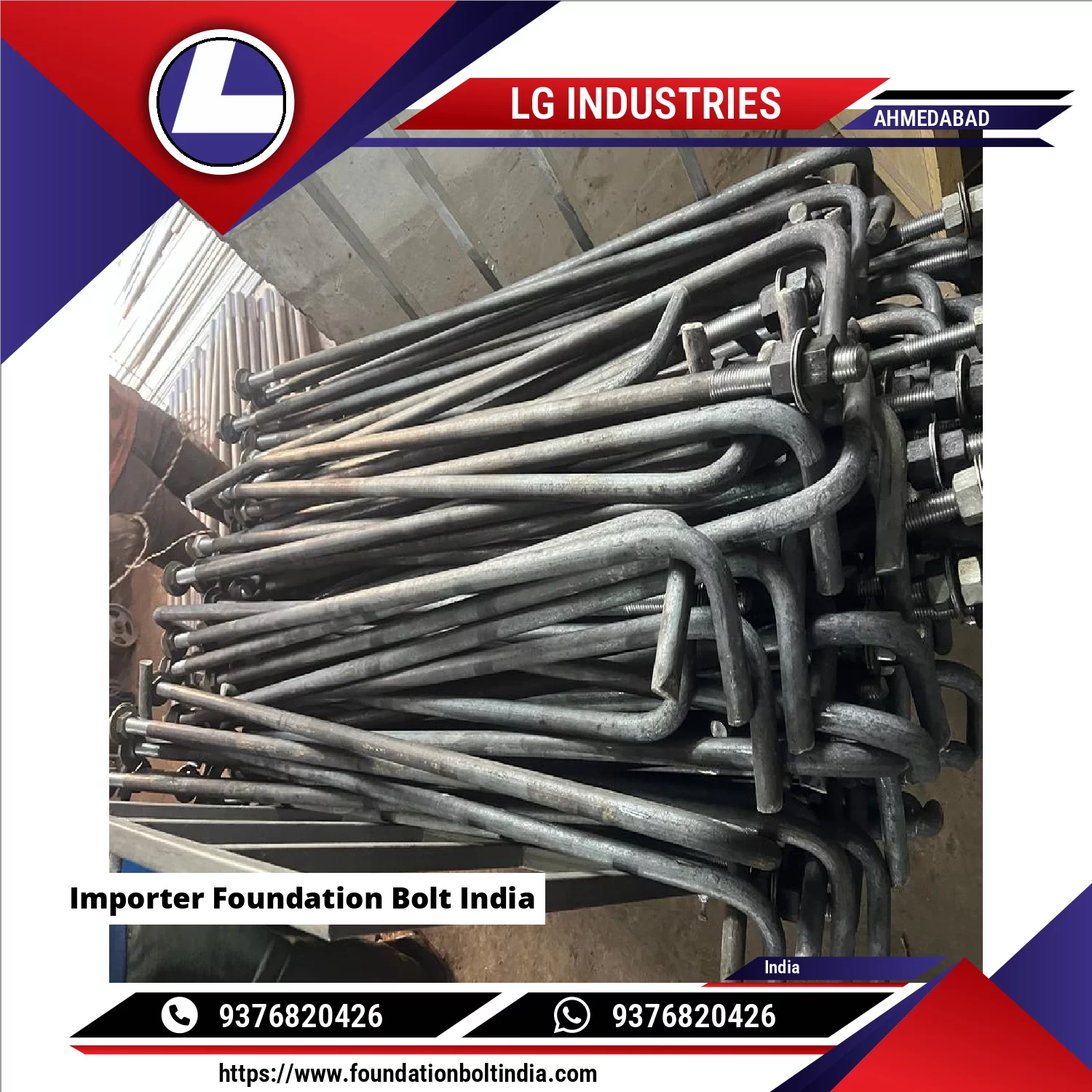

LG Industries manufactures Foundation Bolt is a heavy-duty fastener used to anchor structures, equipment, or machinery to concrete foundations. It is embedded into concrete to provide a strong, stable connection between the foundation and the structural element. Foundation bolts are critical for transferring static and dynamic loads, including tension, shear, vibration, and uplift forces, into the foundation safely.
Key Features
Material: Mild Steel (MS), Carbon Steel, High Tensile Steel, Stainless Steel
Manufacturing: Forged, bent, or plate-welded as per design
Threading: Metric threads with nut and washer arrangement
Finish: Plain, Zinc Plated, Hot-Dip Galvanized, or epoxy coated
Grades: 4.6, 5.6, 8.8, 10.9, or as specified
Sizes: Custom diameters and lengths as per drawing or requirement
Types of Foundation Bolts
L Type Foundation Bolt
J Type Foundation Bolt
U Type Foundation Bolt
Straight / Stud Type Foundation Bolt
Plate Welded Foundation Bolt
Stiffener / T Type Foundation Bolt
Chemical Foundation Bolt
Applications
Steel columns and base plate fixing
Power plants, refineries, cement plants
PEB structures and industrial sheds
Heavy machinery and equipment foundations
Towers, poles, bridges, and infrastructure projects

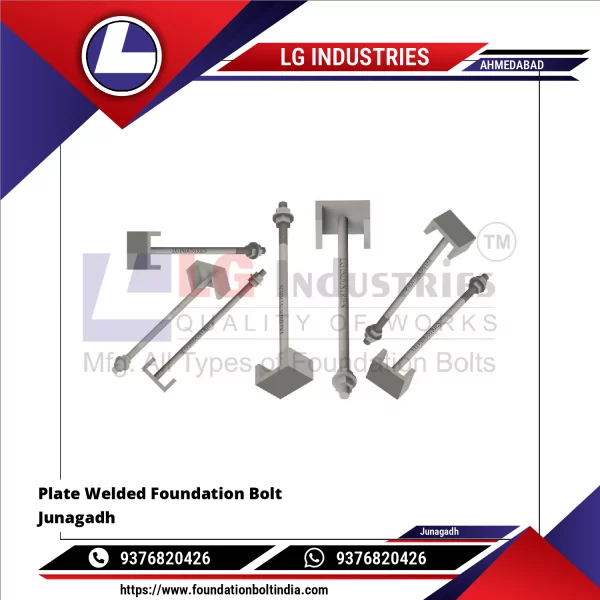

Plate Welded Foundation Bolt Consists Of A Threaded Rod Or Round Bar With A Square Or Rectangular MS Plate Welded At The Bottom. When Embedded In Concrete, The Welded Plate Acts As An Anchor, Preventing Uplift, Rotation, And Slippage Under Heavy Loads. The Exposed Threaded Portion Is Used To Secure Base Plates With Nuts And Washers. LG Industries Manufactures Plate Weld Foundation Bolts.Key Features Welded Anchor Plate For Superior AnchorageHigh Load-bearing And Pull-out ResistanceS Continue

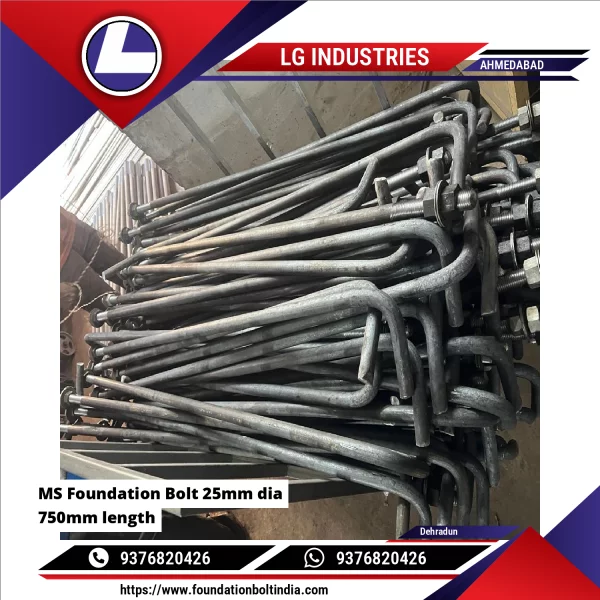

LG Industries Manufactures MS (Mild Steel) Foundation Bolt Of 25 Mm Diameter And 750 Mm Length Is A Heavy-duty Anchoring Fastener Used To Securely Fix Structural Steel And Equipment Base Plates To Concrete Foundations. It Is Widely Used In Power Plants, Cement Plants, Industrial Buildings, Heavy Machinery Foundations, And Infrastructure Projects.Basic SpecificationsDiameter: 25 Mm (M25)Length: 750 MmMaterial: Mild Steel (IS 2062 / IS 1367)Thread: Metric (as Per IS 4218 / ISO)Thread L Continue
We Are Manufacturing Foundation Bolts For Structural Anchoring Applications Where Strength, Alignment, And Long-term Stability Are Imperative. These Bolts Are Widely Used In Construction And Industrial Projects To Secure Columns, Poles, Steel Structures, And Heavy Machinery Into Concrete Foundations. Their U-shaped Design Provides Superior Grip And Load Distribution, Making Them Suitable For Both Static And Dynamic Loads.Our Specialists Are Distributing Foundation Bolts In Multiple Sizes, Grad Continue
