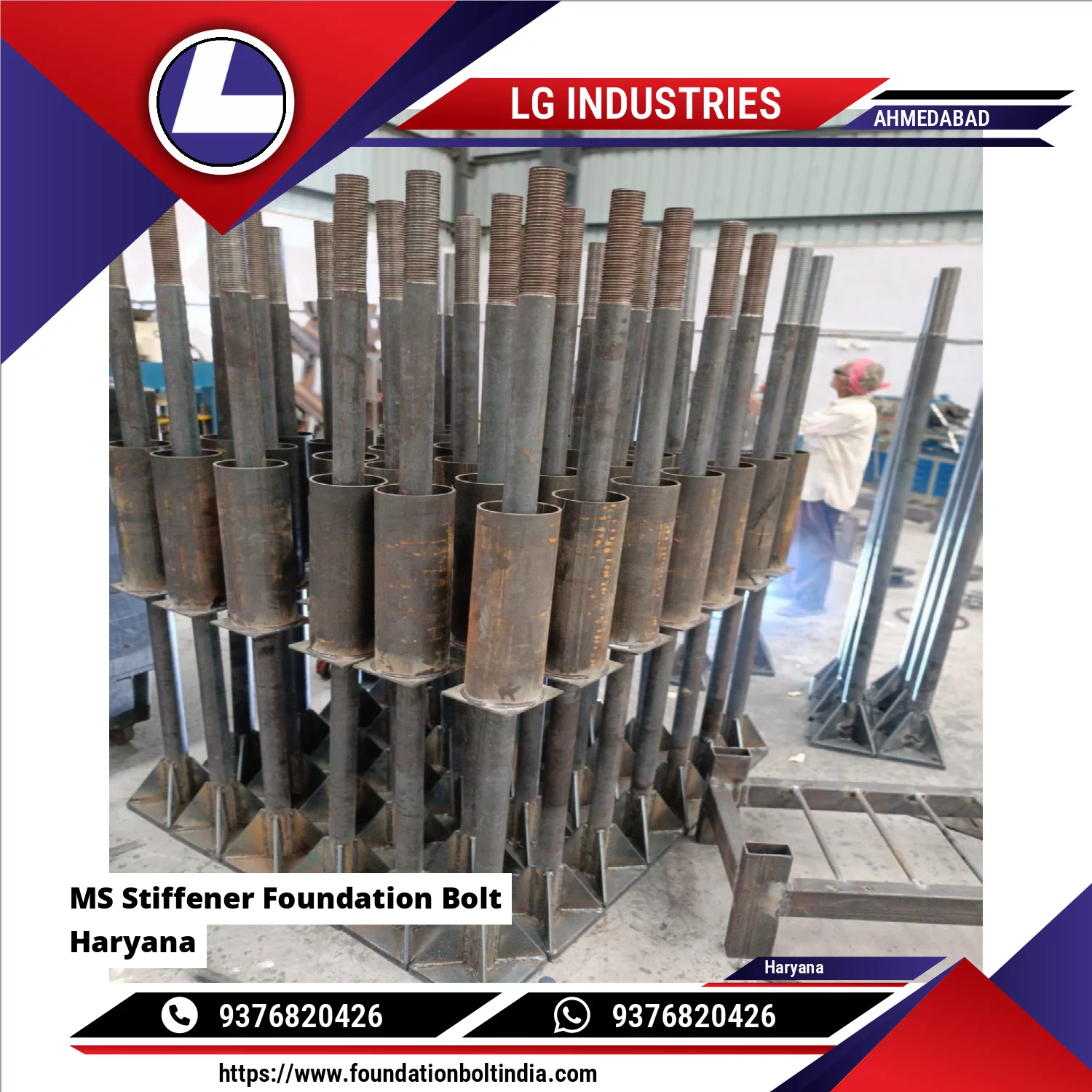

LG Industries manufactures MS Stiffener Foundation Bolts are heavy-duty anchor bolts manufactured from mild steel (MS) and fitted with stiffener plates welded to the anchor plate. The stiffeners significantly increase the load-carrying capacity, pull-out resistance, and stability of the bolt assembly. These bolts are mainly used in heavy industrial, power, refinery, chemical, and infrastructure projects where very high tensile and shear forces are involved.
Key Features
Stiffener plates welded between bolt shank and anchor plate
Designed for very high tensile, shear, and fatigue loads
Excellent resistance to pull-out and concrete cracking
Suitable for static and dynamic load conditions
Supplied as single bolts or complete bolt cage assemblies
Construction Details
High-quality MS round bar foundation bolt
Anchor plate welded at the embedded end
Stiffener plates welded to reinforce the anchor plate connection
Threaded top portion with heavy hex nut & washer
Optional double nut for leveling
Material Specification
Bolt Rod & Plates: IS 2062 (E250 / E350)
Optional high-tensile grades on request
Welding as per IS / AWS standards
Surface Finish
Black / Self finish
Hot Dip Galvanized (HDG) as per IS 4759 / ASTM A153
Epoxy / zinc-rich coating (as per project requirement)
Size Range
Diameter: M24 to M72
Length: 600 mm to 6000 mm
Anchor Plate Thickness: As per load design
Stiffener Plate Thickness: Typically 6–12 mm
Standards & Quality
Manufactured as per approved GA & foundation drawings
Dimensional accuracy & weld inspection
Suitable for OEM and EPC project requirements
Applications
Heavy equipment foundations
Refinery & chemical plant structures
Power plant machinery
Wind turbine & transmission structures
Steel columns with high overturning loads
LG Industries Manufacture MS Stiffener Foundation Bolt (where MS Stands For Mild Steel) Is A Type Of Foundation/anchor Bolt That Includes A Stiffener Plate Or Reinforcement Plate. This Stiffener Is Welded Or Fixed To The Bolt Body To Enhance Its Strength, Stability, And Load-distribution Capabilities When Embedded In Concrete Foundations. An MS Stiffener Foundation Bolt Is A Heavy-duty Anchoring Bolt Made From Mild Steel That Has An Attached Stiffener Plate (also Called A Reinforcement Plate) Ne Continue
MS Stiffener Foundation BoltThese MS Stiffener Foundation Bolts Are High-strength Steel Bolts Designed To Anchor Heavy Machinery, Structural Frameworks, And Equipment Bases Securely To Foundations. They Provide Rigidity And Stability, Ensuring That Machines Or Structures Maintain Alignment And Withstand Operational Vibrations Or Dynamic Loads. These Bolts Are Widely Used In Industrial, Construction, And Manufacturing Applications Where Precise And Durable Fastening Is Critical.FeaturesPr Continue
MS Stiffener Foundation BoltWe Are Manufacturing MS Stiffener Foundation Bolt Built For Strong Anchoring And Load-bearing Applications In Industrial And Construction Setups. These Bolts Ensure Secure Structural Support And Long-lasting Performance Under Heavy-duty Conditions.Product HighlightsHigh Tensile Strength: Provides Excellent Resistance Against Bending And Vibration.Corrosion-Proof Coating: Manufactured To Endure Moisture And Outdoor Exposure.Accurate Thread Finish: Guarantee Continue
