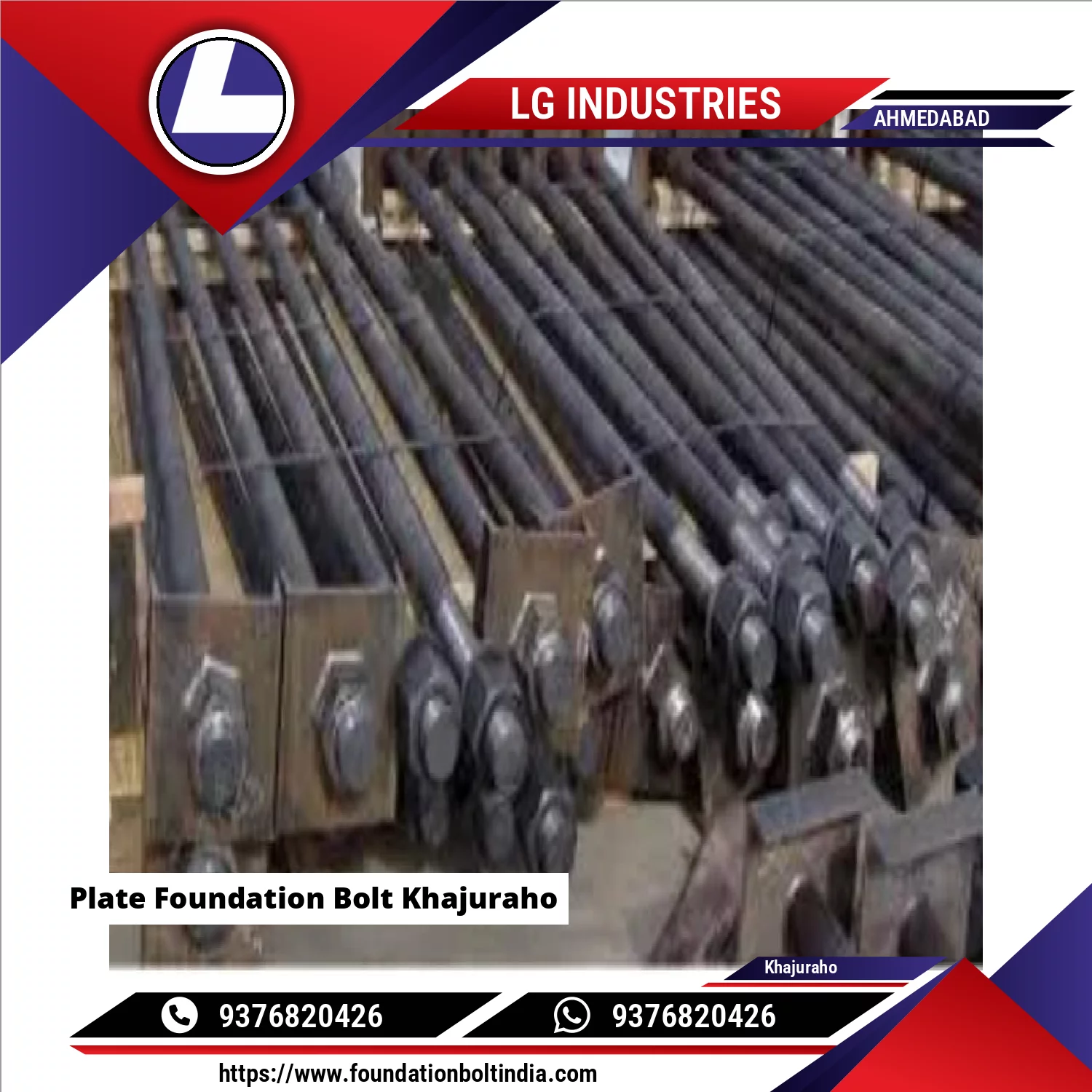

High Tensile Plate Foundation Bolt is a heavy-duty anchor bolt designed to withstand very high tensile and shear loads. It consists of a high-strength threaded rod with a welded MS plate at the embedded end, providing superior anchorage in concrete foundations.
A plate foundation bolt is a straight anchor bolt where a square or rectangular plate is welded at the bottom end. When made from high tensile steel (HT grade), it is used in critical structural and heavy machinery applications.
Material: High Tensile Carbon / Alloy Steel
Common Grades:
8.8 Grade (most common)
10.9 Grade (very high load applications)
Standards:
IS 1367
ASTM A193 / A320
EN / DIN standards
Diameter: M20 to M64 (custom sizes available)
Length: 300 mm to 3000 mm (as per foundation depth)
Plate Size:
75×75 mm to 300×300 mm
Thickness: 6 mm to 25 mm
Thread: Full or partial (Metric / UNC)
Finish:
Black / Self Finish
Hot Dip Galvanized (HDG)
Zinc Plated
LG Industries Manufactures Double Plate Foundation Bolt Is A Heavy-duty Anchoring Bolt Designed To Securely Fix Structural Members, Columns, And Heavy Machinery To Concrete Foundations. It Features Two Steel Plates Welded To The Bolt Shank, Which Significantly Improve Load Distribution And Anchorage Strength Compared To Single-plate Or Bent-type Foundation Bolts.The Lower Plate Acts As A Strong Anchor Embedded Deep Inside The Concrete, While The Upper Plate Provides Additional Resistance Again Continue
Double Plate Foundation Bolt Produced By LG Industries is A Heavy-duty Anchor Bolt Designed With Two Welded Plates At The Embedded End, Providing Maximum Anchorage And Pull-out Resistance In Concrete Foundations. The Double Plate Arrangement Increases The Bearing Area Inside The Concrete, Making It Ideal For High-load And Vibration-prone Applications.Key FeaturesMaterial: Mild Steel (MS), Carbon Steel, Or High Tensile SteelDesign: Straight Threaded Rod With Two Square Or Rectangular P Continue
All Types Of Foundation Bolts – Complete DescriptionLG Industries Manufactures Foundation Bolts Are Anchoring Fasteners Used To Fix Structural Steel, Machinery, And Equipment To Concrete Foundations. Depending On Load, Application, And Installation Method, Different Types Of Foundation Bolts Are Used In PEB Structures, Power Plants, Refineries, Cement Plants, Bridges, And Heavy Industrial Projects.Materials & GradesMild Steel (IS 2062 / IS 1367)High Tensile Steel (Grade 8.8, 10 Continue
