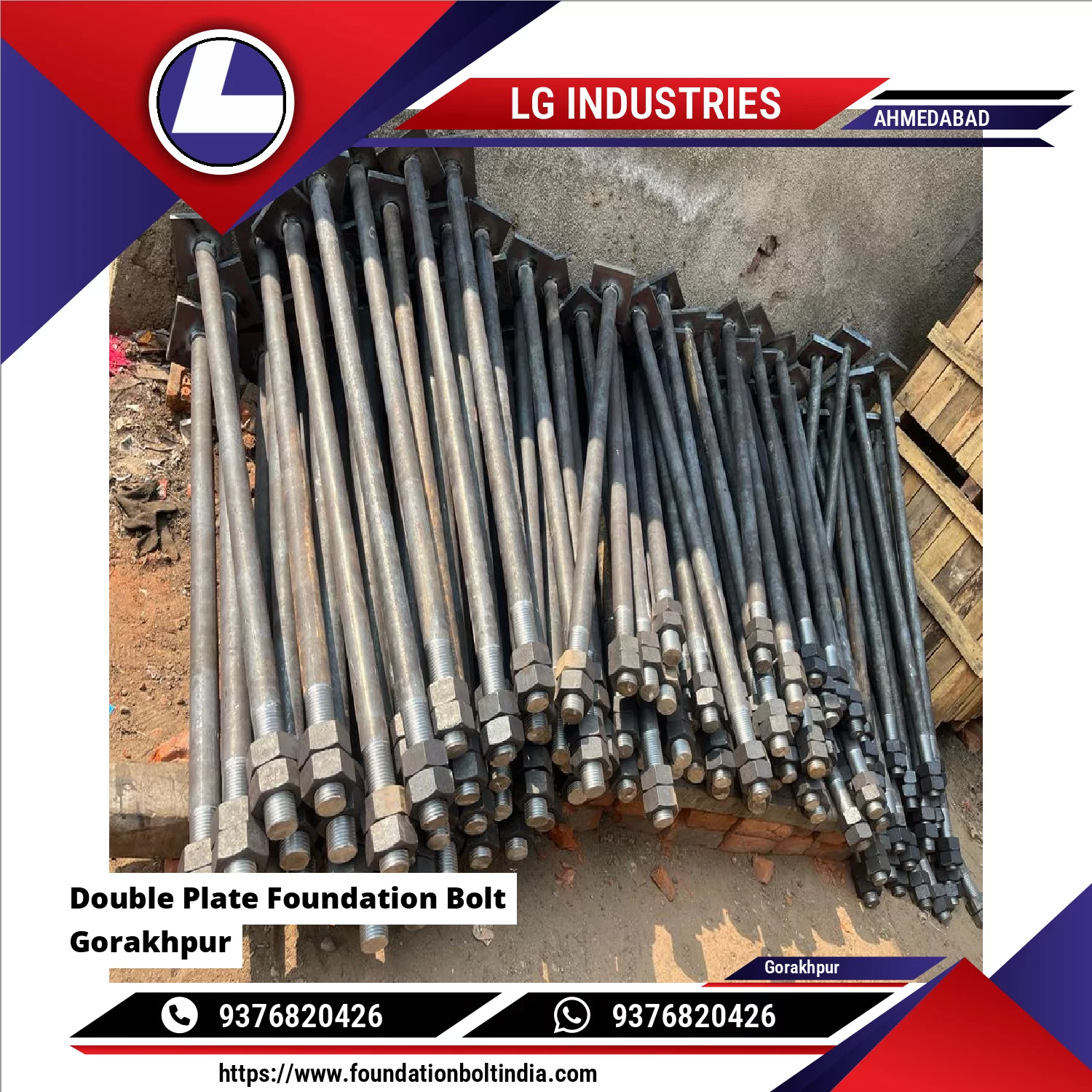

Double Plate Foundation Bolt manufactured by LG Industries is a heavy-duty anchor bolt used in construction and engineering applications for securely anchoring structural elements, heavy equipment, machinery, or steel frameworks to concrete foundations. What sets it apart is that it has two welded steel plates attached to the bolt’s shaft — one at the bottom and another at a specified intermediate or top position — instead of just a single anchor plate.
Primary Anchor Plate: Embedded deep within the concrete to provide strong grip and prevent pull-out.
Secondary (Load-Distribution) Plate: Positioned above the bottom plate on the bolt’s shaft to enhance load distribution and stability, especially under dynamic or vibration loads.
When a Double Plate Foundation Bolt is cast into concrete, both welded plates become embedded inside. The plates create a larger bearing area within the concrete, increasing resistance against pull-out, uplift forces, and vibration caused by machinery or dynamic structural loads. The nuts and washers on the exposed threaded end hold the structural component tightly against the foundation.
Double Plate Foundation Bolts Are Specially Designed Anchor Bolts Used To Provide Superior Holding Strength And Stability In Concrete Foundations. These Bolts Feature Two Welded Anchor Plates At The Embedded End, Which Significantly Increase Pull-out Resistance And Load Distribution Within The Concrete.Manufactured From Mild Steel Or High Tensile Steel, Double Plate Foundation Bolts Are Ideal For Applications Requiring High Structural Safety And Vibration Resistance. The Plates Are Precision-w Continue
Double Plate Foundation BoltLg Industries Manufactures Double Plate Foundation Bolt Is A Heavy-duty Anchoring Fastener Designed For Maximum Strength And Stability In Concrete Foundations. Manufactured Using High-quality MS Or High-tensile Steel, This Foundation Bolt Features Two Welded Steel Plates At The Embedded End, Providing Exceptional Pull-out Resistance And Superior Load Distribution Compared To Single-plate Or Straight Anchor Bolts.Widely Used In Steel Structures, Industrial Machiner Continue
LG Industries Manufactures Straight Anchor Bolt With Two Steel Plates Welded At The Bottom (one Above The Other) At A Fixed Gap. These Plates Act As Mechanical Anchors, Providing Excellent Resistance Against Pull-out, Shear, And Dynamic Loads.Bolt Type: Straight Round Bar With Threaded TopBottom Anchorage: Two MS Plates Welded Perpendicular To The BoltTop End: Threaded With Heavy Hex Nut & WasherInstallation: Cast-in-place Inside Concrete FoundationBolt Material:MS (IS 2062 / AST Continue
