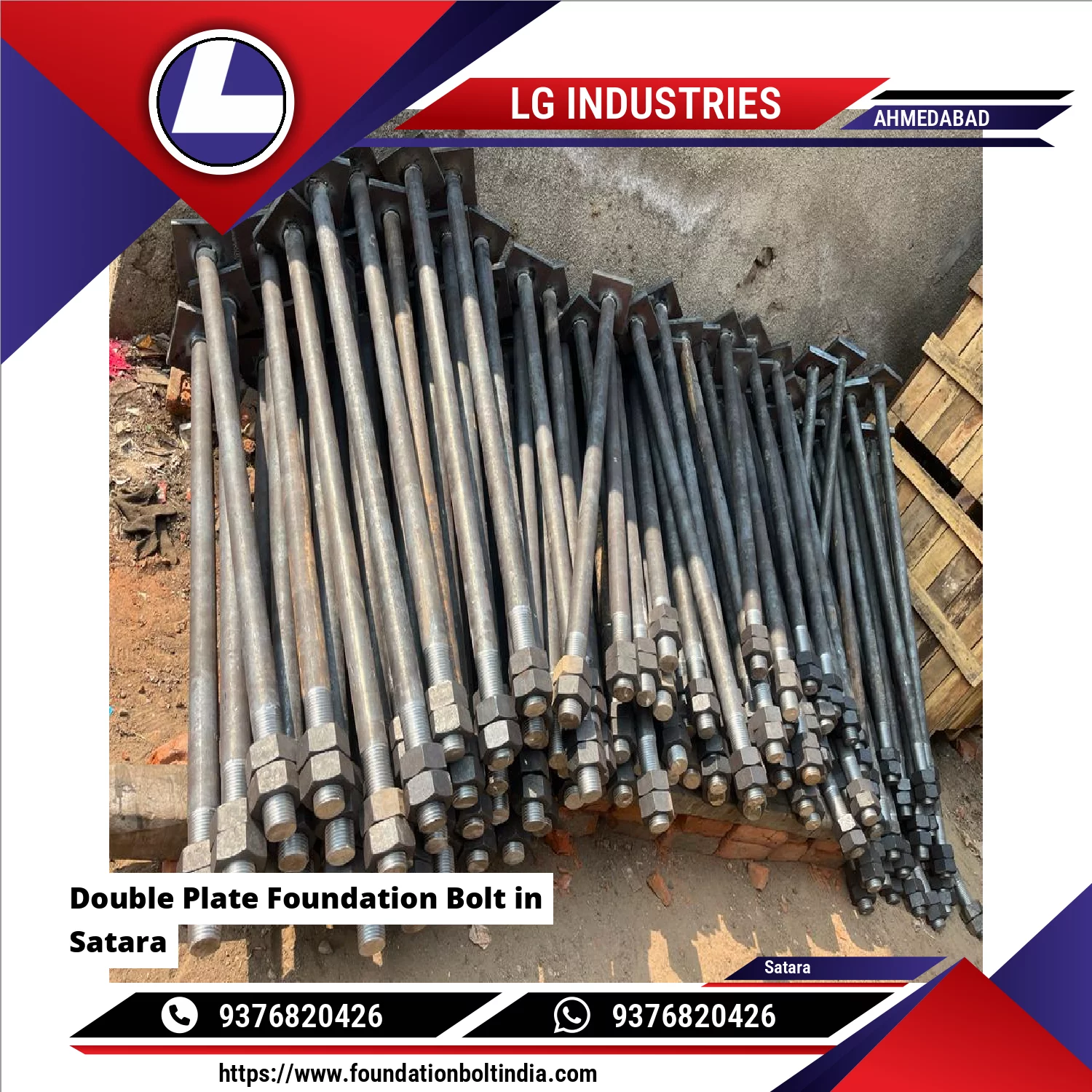

LG Industries manufactures straight anchor bolt with two steel plates welded at the bottom (one above the other) at a fixed gap. These plates act as mechanical anchors, providing excellent resistance against pull-out, shear, and dynamic loads.
Bolt type: Straight round bar with threaded top
Bottom anchorage: Two MS plates welded perpendicular to the bolt
Top end: Threaded with heavy hex nut & washer
Installation: Cast-in-place inside concrete foundation
Bolt material:
MS (IS 2062 / ASTM A36)
High tensile steel (Grade 8.8 / ASTM F1554 Gr.55/105)
Plate material:
MS plate (IS 2062)
Grade options: 4.6 / 5.6 / 8.8
LG Industries Manufactures Double Plate Foundation Bolt Is A Heavy-duty Anchoring Bolt Designed To Securely Fix Structural Members, Columns, And Heavy Machinery To Concrete Foundations. It Features Two Steel Plates Welded To The Bolt Shank, Which Significantly Improve Load Distribution And Anchorage Strength Compared To Single-plate Or Bent-type Foundation Bolts.The Lower Plate Acts As A Strong Anchor Embedded Deep Inside The Concrete, While The Upper Plate Provides Additional Resistance Again Continue
LG Industries Manufactures Double Plate Foundation Bolt Is A Heavy-duty Anchor Bolt Designed To Secure Structural Steel Columns, Heavy Machinery, And Industrial Equipment To Concrete Foundations. It Features Two Anchor Plates Welded At The Embedded End, Which Significantly Improve Load Transfer And Resistance Against Pull-out And Uplift Forces. Bolt Type: Straight Threaded Rod Or Round BarAnchor Plates: Two MS Plates Welded Perpendicular To The Bolt At The BottomMaterial: Mild Steel ( Continue
Double Plate Foundation Bolt Manufactured By LG Industries Is A Heavy-duty Anchor Bolt Used In Construction And Engineering Applications For Securely Anchoring Structural Elements, Heavy Equipment, Machinery, Or Steel Frameworks To Concrete Foundations. What Sets It Apart Is That It Has Two Welded Steel Plates Attached To The Bolt’s Shaft — One At The Bottom And Another At A Specified Intermediate Or Top Position — Instead Of Just A Single Anchor Plate. Primary Anchor Pl Continue
