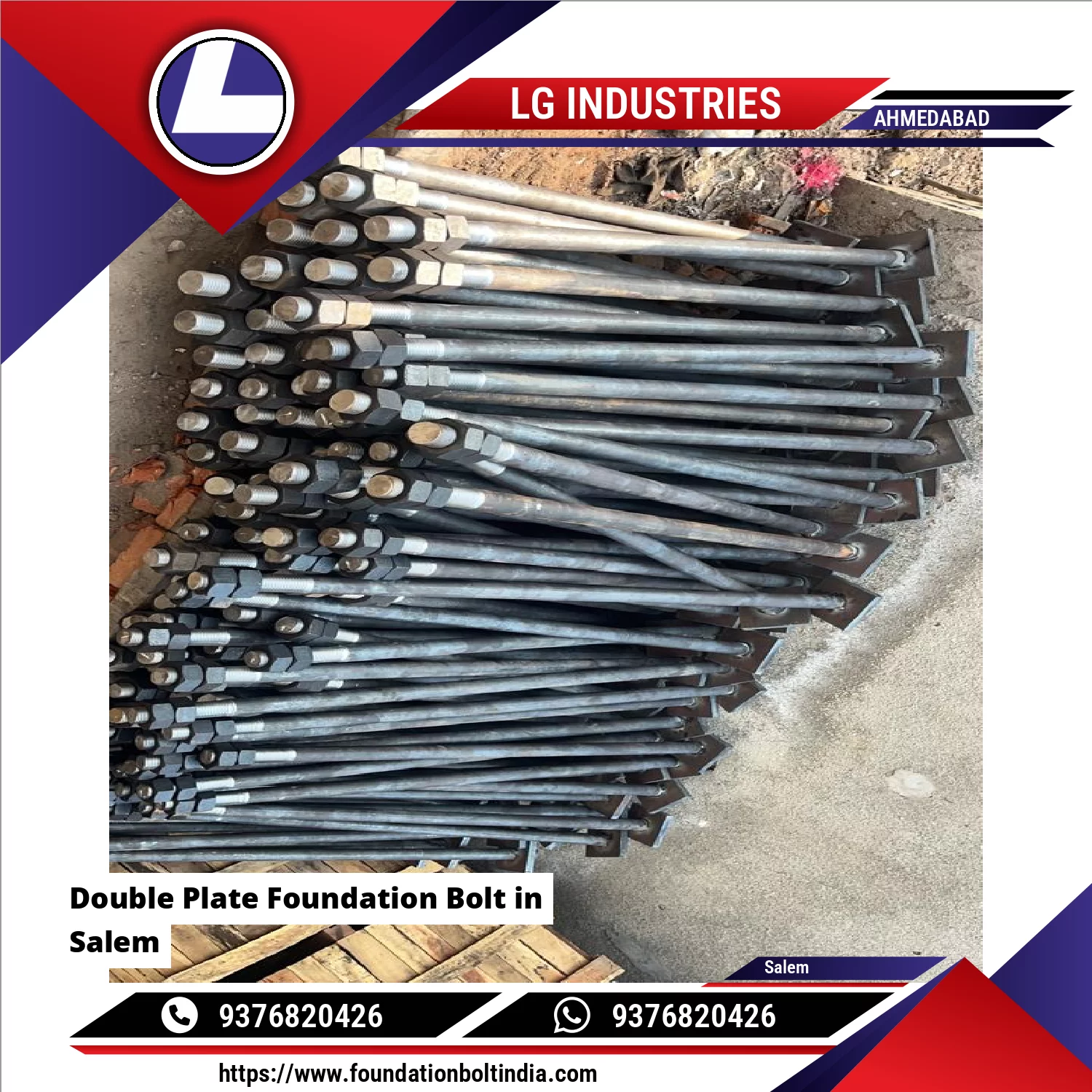

LG Industries manufactures Double Plate Foundation Bolt is a heavy-duty anchor bolt designed to secure structural steel columns, heavy machinery, and industrial equipment to concrete foundations. It features two anchor plates welded at the embedded end, which significantly improve load transfer and resistance against pull-out and uplift forces.
Bolt Type: Straight threaded rod or round bar
Anchor Plates: Two MS plates welded perpendicular to the bolt at the bottom
Material: Mild Steel (MS) – commonly Grade 4.6, also available in 8.8 / high-tensile grades
Threading: Metric threads at the top end for nut and washer fixing
Finish: Black, zinc plated, or hot-dip galvanized for corrosion resistance
double anchor plates act as mechanical keys inside the concrete, distributing loads over a larger area. This design prevents bolt rotation, pull-out, and uplift, ensuring strong anchorage even under dynamic or heavy loads.
Double Plate Foundation Bolt Produced By LG Industries is A Heavy-duty Anchor Bolt Designed With Two Welded Plates At The Embedded End, Providing Maximum Anchorage And Pull-out Resistance In Concrete Foundations. The Double Plate Arrangement Increases The Bearing Area Inside The Concrete, Making It Ideal For High-load And Vibration-prone Applications.Key FeaturesMaterial: Mild Steel (MS), Carbon Steel, Or High Tensile SteelDesign: Straight Threaded Rod With Two Square Or Rectangular P Continue
LG Industries Manufactures Double Plate Foundation Bolt Is A Heavy-duty Anchoring Bolt Designed To Securely Fix Structural Members, Columns, And Heavy Machinery To Concrete Foundations. It Features Two Steel Plates Welded To The Bolt Shank, Which Significantly Improve Load Distribution And Anchorage Strength Compared To Single-plate Or Bent-type Foundation Bolts.The Lower Plate Acts As A Strong Anchor Embedded Deep Inside The Concrete, While The Upper Plate Provides Additional Resistance Again Continue
LG Industries Manufactures Straight Anchor Bolt With Two Steel Plates Welded At The Bottom (one Above The Other) At A Fixed Gap. These Plates Act As Mechanical Anchors, Providing Excellent Resistance Against Pull-out, Shear, And Dynamic Loads.Bolt Type: Straight Round Bar With Threaded TopBottom Anchorage: Two MS Plates Welded Perpendicular To The BoltTop End: Threaded With Heavy Hex Nut & WasherInstallation: Cast-in-place Inside Concrete FoundationBolt Material:MS (IS 2062 / AST Continue
