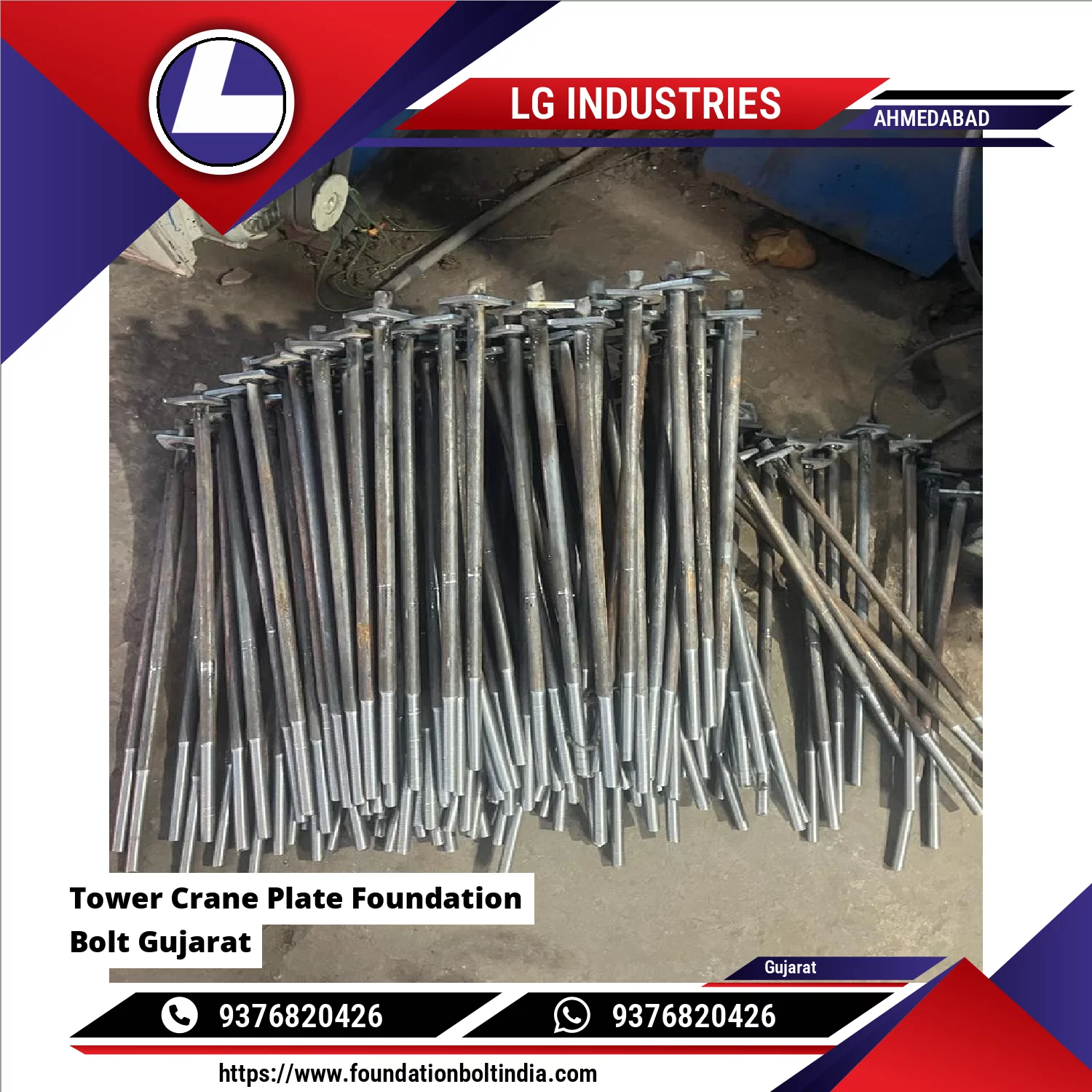

It is a straight foundation bolt with a thick MS plate welded at the bottom. The plate acts as a mechanical anchor inside concrete, providing very high pull-out and shear resistance.
Used mainly for:
Tower crane base frame
Tower crane mast foundation
Climbing crane foundations
Bolt type: Straight round bar
Bottom: Single square or circular welded plate
Top: Precision threading for nut & washer
Installation: Cast-in-situ with steel template
Bolt material
MS (IS 2062 / ASTM A36)
High tensile steel (Grade 8.8 / 10.9)
Plate material
MS plate (IS 2062)
Nuts & washers
Heavy hex nut
Hardened washer
LG Industries manufactures all type of Foundation Bolt in Ahmedabad, Gujarat.
Lg Industries Manufactures Plate Foundation Bolt Is A Heavy-duty Anchoring Solution Designed To Provide Maximum Stability And Load Transfer In Concrete Foundations. These Bolts Feature A Welded Base Plate At The Bottom, Which Enhances Pull-out Resistance And Ensures Firm Anchorage In High-load Structural Applications. Manufactured From High-quality Mild Steel Or High Tensile Steel, Plate Foundation Bolts Are Widely Used In Power Plants, Steel Structures, Transmission Towers, Industrial Machinery Continue
Plate Foundation Bolt Is A Heavy-duty Anchor Bolt Designed To Securely Fix Steel Columns, Structures, And Heavy Machinery To Concrete Foundations. In This Type Of Bolt, A Steel Plate Is Welded To The Embedded End Of The Bolt, Providing Superior Anchorage And High Load-bearing Capacity.Design & ConstructionConsists Of A Straight Round Bar With Threads On The Top End.The Bottom End Has A Square Or Circular Plate Welded To It.The Welded Plate Acts As An Anchor, Resisting Pull-out And Up Continue
LG Industries Manufactures Plate Foundation Bolt Is A Heavy-duty Anchoring Fastener Used To Secure Structural Columns, Base Plates, Machinery, And Heavy Equipment To Concrete Foundations. It Consists Of A Threaded MS Or High-tensile Bolt With A Welded Anchor Plate At One End, Which Provides Superior Pull-out Resistance And Load Distribution Within The Concrete.These Bolts Are Embedded In Concrete During Foundation Casting, With The Threaded Portion Projecting Above The Surface For Tightening U Continue
