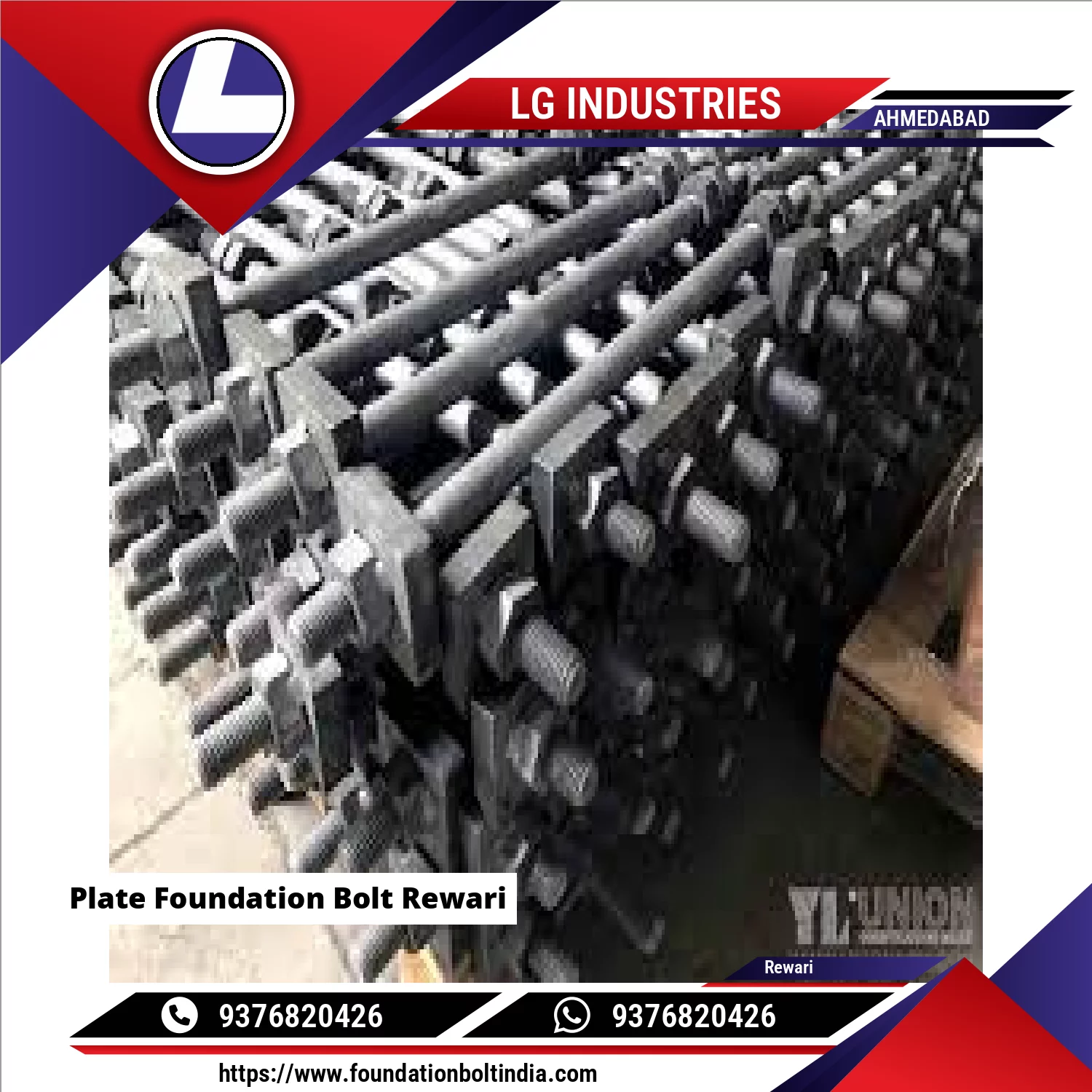

Plate Foundation Bolt is a heavy-duty anchor bolt designed to securely fix steel columns, structures, and heavy machinery to concrete foundations. In this type of bolt, a steel plate is welded to the embedded end of the bolt, providing superior anchorage and high load-bearing capacity.
Design & Construction
Consists of a straight round bar with threads on the top end.
The bottom end has a square or circular plate welded to it.
The welded plate acts as an anchor, resisting pull-out and uplift forces.
Supplied with nuts and washers for tightening above the concrete surface.
Material & Finish
Commonly manufactured from Mild Steel (MS), Carbon Steel, or High Tensile Steel.
Available finishes:
Black / self-color
Hot-dip galvanized
Zinc plated
Epoxy coated (on request)
Grades: 4.6, 5.6, 8.8, or as per structural design.
Plate Foundation Bolt Is A Robust Anchoring Fastener Used To Secure Heavy Structures To Concrete Foundations. It Features A Steel Bolt With A Square Or Rectangular Plate Welded At The Embedded End, Which Provides Excellent Anchorage By Increasing Bearing Area And Resistance To Pull-out Forces.The Welded Plate Helps Distribute Loads Uniformly Within The Concrete, Making Plate Foundation Bolts Suitable For Applications Such As Steel Structures, Industrial Sheds, Power Plants, Transmission Towers Continue
Lg Industries Manufactures Plate Foundation Bolt Is A Heavy-duty Anchoring Solution Designed To Provide Maximum Stability And Load Transfer In Concrete Foundations. These Bolts Feature A Welded Base Plate At The Bottom, Which Enhances Pull-out Resistance And Ensures Firm Anchorage In High-load Structural Applications. Manufactured From High-quality Mild Steel Or High Tensile Steel, Plate Foundation Bolts Are Widely Used In Power Plants, Steel Structures, Transmission Towers, Industrial Machinery Continue
What Is A Tower Crane Plate Foundation Bolt?It Is A Straight Foundation Bolt With A Thick MS Plate Welded At The Bottom. The Plate Acts As A Mechanical Anchor Inside Concrete, Providing Very High Pull-out And Shear Resistance.Used Mainly For:Tower Crane Base FrameTower Crane Mast FoundationClimbing Crane Foundations? Construction DetailsBolt Type: Straight Round BarBottom: Single Square Or Circular Welded PlateTop: Precision Threading For Nut & WasherInstallation: Cast-in Continue
