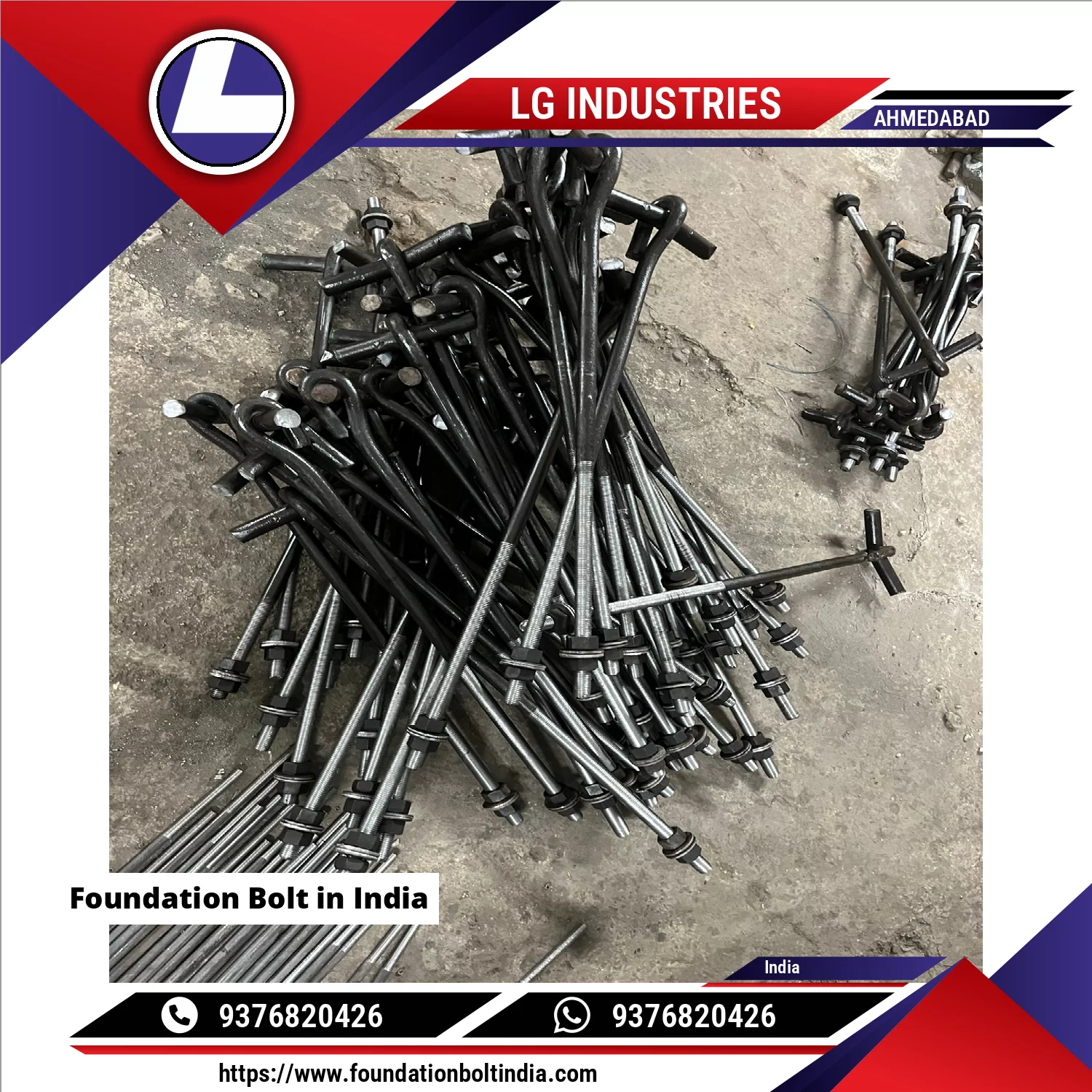

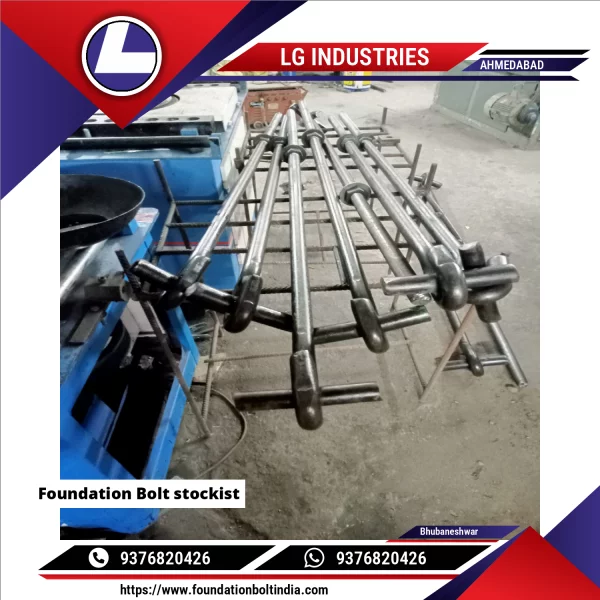

LG Industries manufactures Foundation bolt is a steel fastener embedded in a concrete foundation to securely anchor structural or mechanical components such as steel columns, base plates, machinery, and equipment. It provides a strong connection that resists tensile, shear, and uplift forces, ensuring structural stability and alignment.
Key Details:
Material: Mild steel, high-tensile steel, or stainless steel
Finish: Plain, galvanized, or hot-dip galvanized
Installation: Cast-in-place or post-installed
Load Resistance: Designed to transfer structural loads safely into the foundation
Common Types:
L-type foundation bolt
J-type foundation bolt
Straight / headed foundation bolt
Anchor rod with nut and washer

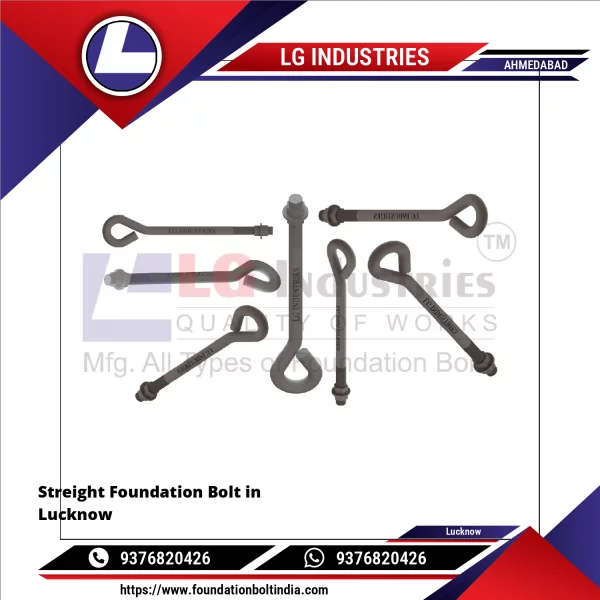

Straight Foundation Bolt Is A High-performance Anchor Fastener Designed To Secure Structural Elements, Heavy Machinery, Equipment Bases, And Steel Columns Directly To Concrete Foundations. This Essential Foundation Hardware Provides Superior Load Transfer And Resistance To Pull-out Forces, Making It Ideal For Demanding Construction And Industrial Applications.Boost The Stability And Reliability Of Your Construction And Industrial Projects With Our Premium Straight Foundation Bolt – Enginee Continue
LG Industries Manufactures Foundation Bolts Are Usually Made Of High-strength Steel And Are Placed In Wet Concrete Or Installed Later Using Mechanical Or Chemical Anchoring Methods. The Exposed Threaded End Is Used To Fasten Base Plates With Nuts And Washers.Common TypesL-Type Bolt – Bent At One End; Commonly Used In Building FoundationsJ-Type Bolt – J-shaped End For Strong AnchorageStraight Bolt – Used With Plates Or Chemical AnchorsAnchor Bolt – General Term F Continue
Strength Of A Foundation Bolt (anchor Bolt) Refers To Its Ability To Resist Tension (pull-out), Shear, And Combined Loads When Embedded In Concrete And Tightened With Nut And Washer. LG Industries Manufactures Foundation Bolt In Ahmedabad, Gujarat1. Material / Grade Strength (Steel Capacity)Common Grades Used For Foundation Bolts:Bolt GradeYield StrengthTensile StrengthMild Steel (MS)~250 MPa~410 MPaHigh Tensile 8.8640 MPa800 MPaHigh Tensile 10.994 Continue
