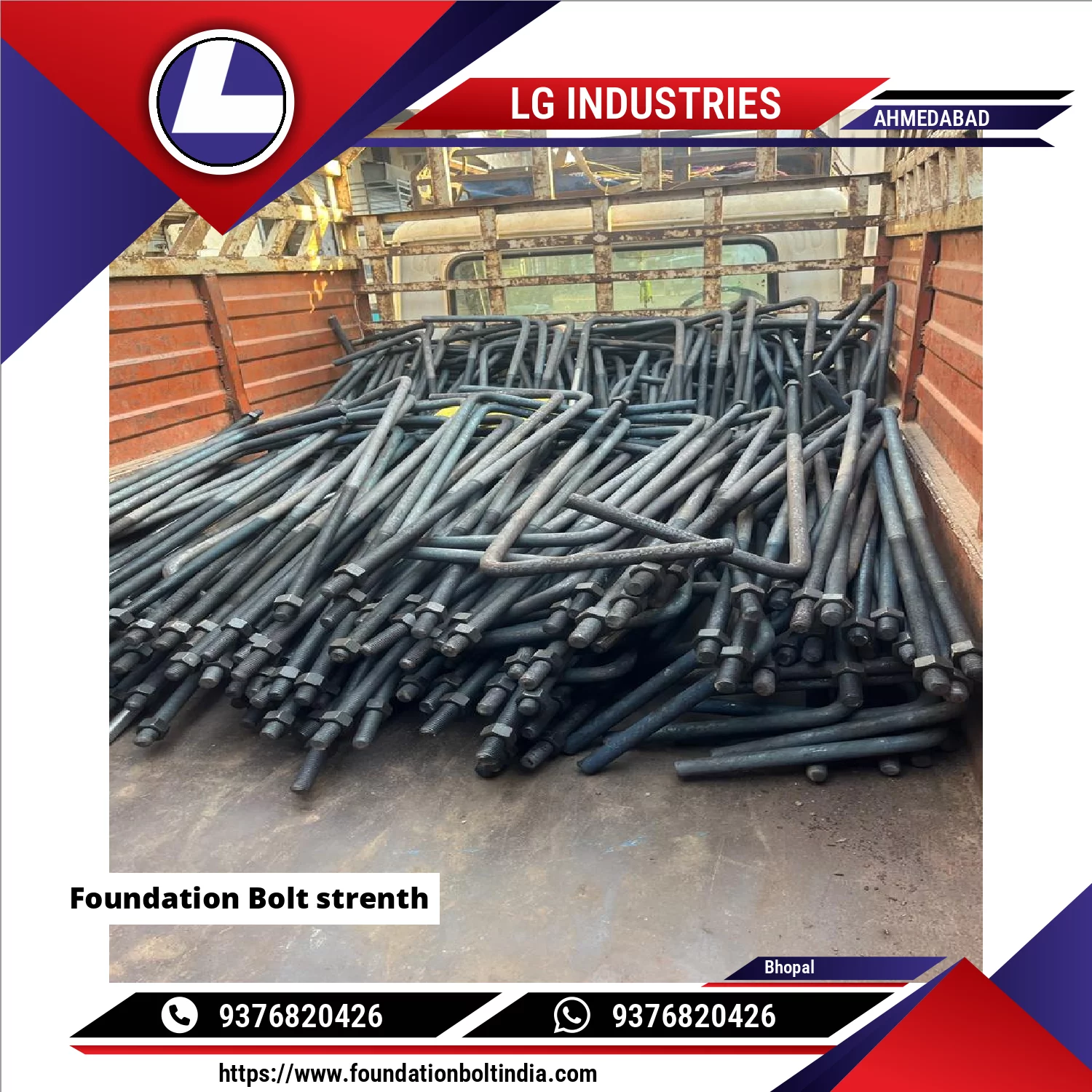

strength of a foundation bolt (anchor bolt) refers to its ability to resist tension (pull-out), shear, and combined loads when embedded in concrete and tightened with nut and washer. LG Industries manufactures foundation bolt in Ahmedabad, Gujarat
1. Material / Grade Strength (Steel Capacity)
Common grades used for foundation bolts:
| Bolt Grade | Yield Strength | Tensile Strength |
|---|---|---|
| Mild Steel (MS) | ~250 MPa | ~410 MPa |
| High Tensile 8.8 | 640 MPa | 800 MPa |
| High Tensile 10.9 | 940 MPa | 1040 MPa |
| ASTM A36 | 250 MPa | 400–550 MPa |
| ASTM F1554 Gr.36 | 250 MPa | 400 MPa |
| ASTM F1554 Gr.55 | 380 MPa | 517 MPa |
| ASTM F1554 Gr.105 | 724 MPa | 862 MPa |
2. Load-Carrying Strength a) Tensile Strength (Pull-out)
Depends on:
Bolt diameter and grade
Embedded length
Concrete strength
Anchor type (J-bolt, L-bolt, plate type)
Longer embedment and anchor plates significantly increase pull-out resistance.
LG Industries Manufactures Foundation Bolts Are Usually Made Of High-strength Steel And Are Placed In Wet Concrete Or Installed Later Using Mechanical Or Chemical Anchoring Methods. The Exposed Threaded End Is Used To Fasten Base Plates With Nuts And Washers.Common TypesL-Type Bolt – Bent At One End; Commonly Used In Building FoundationsJ-Type Bolt – J-shaped End For Strong AnchorageStraight Bolt – Used With Plates Or Chemical AnchorsAnchor Bolt – General Term F Continue
LG Industries Manufactures Foundation Bolt Is A Steel Fastener Embedded In A Concrete Foundation To Securely Anchor Structural Or Mechanical Components Such As Steel Columns, Base Plates, Machinery, And Equipment. It Provides A Strong Connection That Resists Tensile, Shear, And Uplift Forces, Ensuring Structural Stability And Alignment.Key Details:Material: Mild Steel, High-tensile Steel, Or Stainless SteelFinish: Plain, Galvanized, Or Hot-dip GalvanizedInstallation: Cast-in-place Or Pos Continue
Eye Foundation Bolt Products Manufactured By LG Industries, Ahmedabad, Gujarat100 kg Eye Foundation Bolt – Bulk Eye Foundation Bolt (approx. 100 Kg Lot), Suitable For Industrial/construction Use With Threaded Shank And Eye Loop.Eye Bolt DIN 580 M20 – Standard Eye Bolt With DIN 580 Specification; Useful For Attachment Points — Can Serve As Foundation/anchor Eye In Some Setups.Conclood India Bolt Ci‑eye‑bolt – Compact Eye Bolt For Lifting Or Anchoring.Conclo Continue
