Details of J Type Foundation Bolt

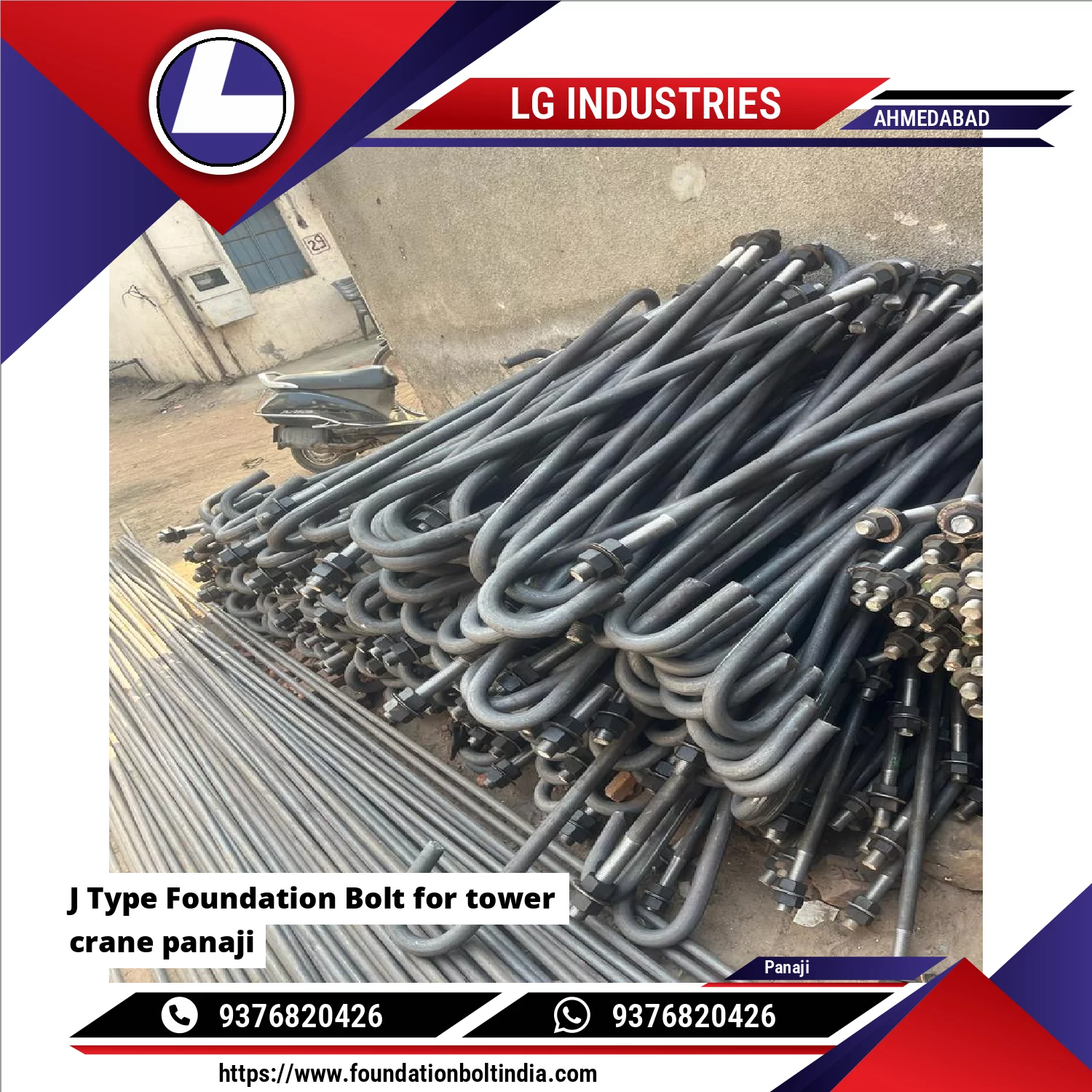

LG Industries manufactures J Type Foundation Bolts are heavy-duty anchor bolts specifically designed to secure tower cranes to reinforced concrete foundations. Their distinctive J-shaped hooked end provides excellent mechanical anchorage within concrete, ensuring stability under high static and dynamic loads generated during crane operation.

Description & Construction

A J Type Foundation Bolt consists of a straight threaded rod with one end bent into a J-hook. The hooked portion is embedded deep into the concrete foundation, while the threaded end projects above the concrete surface to fasten the tower crane base using heavy hex nuts and washers.

For tower crane applications, these bolts are manufactured with high tensile strength and precise dimensional accuracy to withstand:

Heavy vertical loads

Overturning moments

Dynamic forces due to slewing, lifting, and wind loads

Material & Finish

Material: Mild Steel (IS 2062), High Tensile Steel (IS 1367 / ASTM grades as required)

Finish Options:

Black / Self Finish

Hot Dip Galvanized (HDG) – preferred for outdoor crane foundations

Zinc Plated (limited exposure conditions)

Key Features

Strong mechanical anchorage due to J-hook embedment

High resistance to pull-out and shear forces

Simple and reliable design for heavy equipment foundations

Suitable for temporary and permanent tower crane installations

Typical Specifications

Diameter: M24 to M72 (or as per crane manufacturer drawing)

Length: 600 mm to 3000 mm (customized)

Thread: Metric coarse, partial or full thread

Accessories: Heavy hex nuts, plain washers, spring washers / template plates

Offered Product

J Type Foundation Bolt

Since 2013, LG Industries, Based In Ahmedabad, India, Has Been A Trusted Name In Manufacturing And Supplying High-quality J Type Foundation Bolts For A Wide Range Of Industrial And Construction Applications. Known For Their Superior Anchoring Strength And Reliability, These Bolts Are Ideal For Heavy Engineering Projects, Construction Sites, Power Plants, Petrochemical Facilities, Oil & Gas Installations, And Other Infrastructure Ventures.Our J Type Foundation Bolts Are Crafted From Premi... Read more
