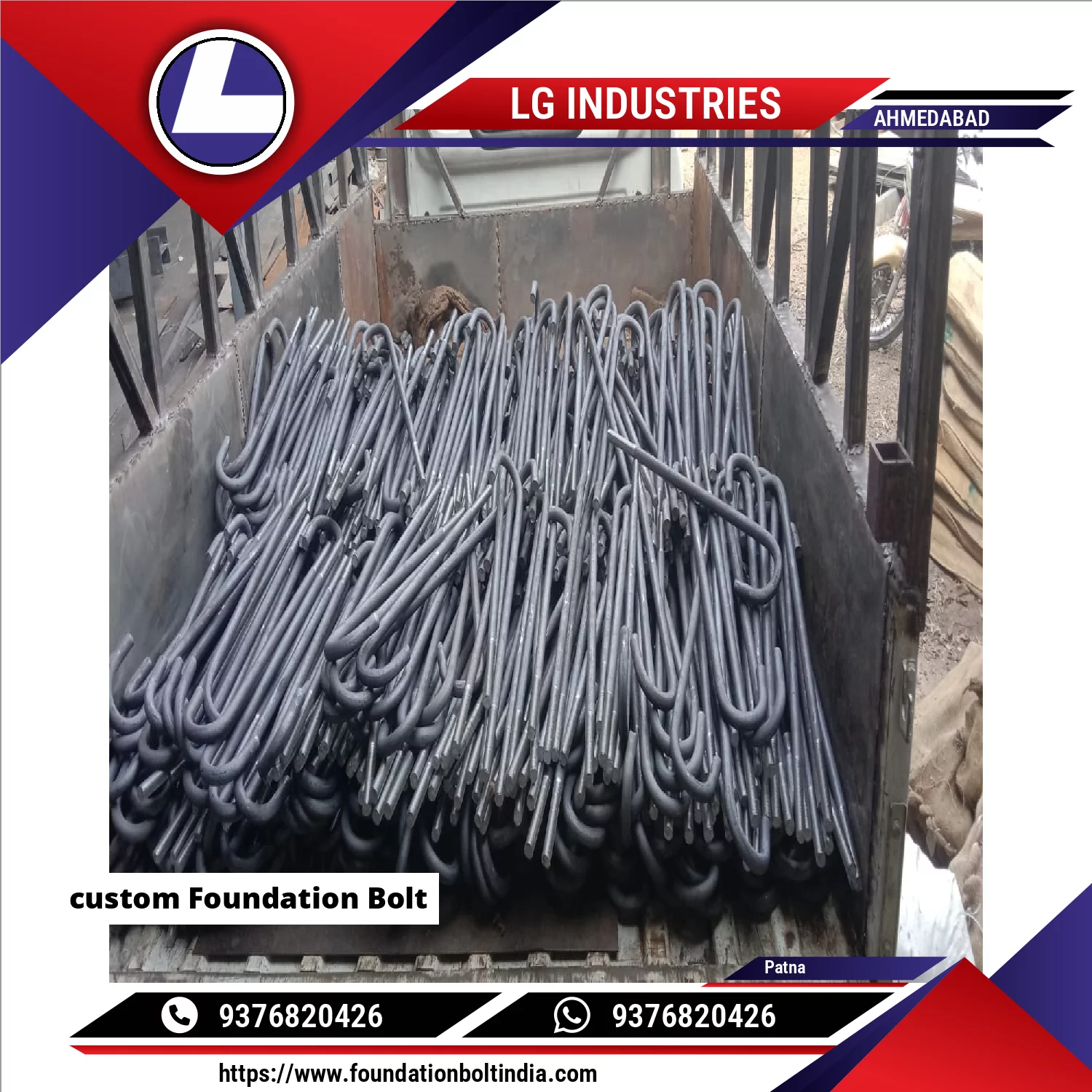

LG Industries manufactures Custom Foundation Bolts are specially engineered anchor bolts manufactured exactly as per customer drawings, load requirements, and site conditions. These bolts are used where standard foundation bolts are not suitable, especially in tower cranes, heavy machinery, steel structures, power plants, refineries, and infrastructure projects.
Design & Manufacturing
Custom foundation bolts can be produced in various shapes and configurations to meet project-specific requirements, such as:
J Type / L Type / U Type / Z Type
Plate Welded Foundation Bolt
Pipe Foundation Bolt
Double Plate or Stiffener Plate Foundation Bolt
Anchor Bolt with Template Plate
Each bolt is fabricated with precise control over diameter, length, embedment depth, threading, and anchorage system to ensure safe load transfer to concrete.
Material Options
Mild Steel (IS 2062)
High Tensile Steel (IS 1367 / ASTM F1554 Gr.36 / 55 / 105)
EN8 / EN19
Stainless Steel (SS 304 / SS 316)
Alloy Steel (as specified)
Surface Finish
Black / Self Finish
Hot Dip Galvanized (IS 4759 / ASTM A123)
Zinc Plated
Epoxy / PTFE Coated (on request)
Key Features
Manufactured strictly as per approved drawings
High pull-out, shear, and fatigue resistance
Suitable for dynamic and heavy load applications
Compatible with chemical or mechanical anchoring systems
Can be supplied with nuts, washers, sleeves, and templates
