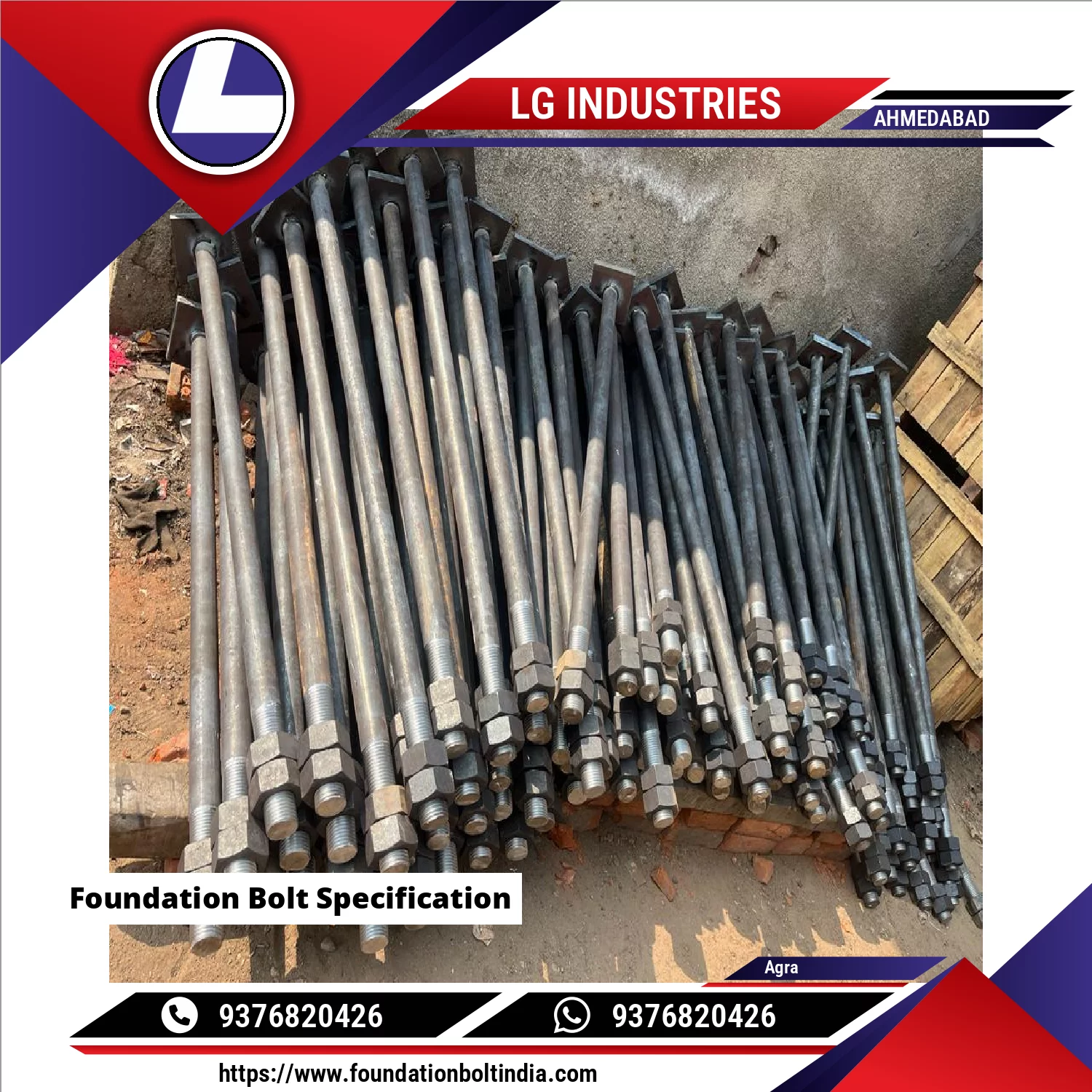

Foundation Bolt Specification

Call Now
WhatsApp
Offer Price
69
Availability
In Stock
Eligible Region
Agra
Category Foundation Bolts
Payment Methods Cash, COD, DirectDebit
Message Now

Details of C Plate Welded Foundation Bolt

Foundation Bolt / Anchor Bolt manufactured by LG Industries

2. Standards & Codes

IS: IS 5624, IS 1367, IS 800

ASTM: ASTM F1554 (Grades 36 / 55 / 105), ASTM A307

DIN: DIN 529

BS: BS 7419 (Manufactured as per customer drawing or approved standard)

3. Types Available

L Type Foundation Bolt

J Type Foundation Bolt

Straight Foundation Bolt

Plate Welded Foundation Bolt

Double Plate Foundation Bolt

Eye Foundation Bolt

T-Type Foundation Bolt

Anchor Bolt with Stiffener Plate

Chemical / Grouted Foundation Bolt

4. Size Range

Diameter: M12 to M100 (½″ to 4″)

Length: 150 mm to 3000 mm (or as per requirement)

Thread Length: 50 mm to 300 mm (customizable)

5. Material Specification

Mild Steel (MS) – IS 2062

High Tensile Steel

EN8 / EN19

Carbon Steel

Alloy Steel

Stainless Steel (SS304 / SS316)

6. Grade

4.6 / 5.6 / 8.8 / 10.9

ASTM F1554 Grade 36 / 55 / 105

ASTM A307 Grade A & B

7. Surface Finish

Black (Self Finish)

Hot Dip Galvanized (HDG – 80–100 microns)

Zinc Plated / Electro Galvanized

Yellow Passivation

Epoxy / PTFE Coated (on request)

8. Thread Type

Metric (MM)

BSW / UNC / UNF

Full Thread or Half Thread

Rolled or Cut Thread

9. Accessories

Hex Nut (Single / Double)

Flat Washer

Spring Washer

Template Plate (on request)

10. Mechanical Properties (Typical)

Tensile Strength: As per grade

Yield Strength: As per standard

Elongation: As per IS / ASTM norms

Proof Load Tested (if required)

11. Installation Method

Cast-in-situ concrete

Pre-set with template plate

Chemical anchoring / grout fixing

12. Applications

Industrial buildings

Steel structures

Power plants

Wind turbines

Refineries & chemical plants

Towers, cranes & heavy machinery

Bridges & infrastructure projects

13. Inspection & Testing

Dimensional check

Thread gauge inspection

Coating thickness test

Mechanical test (on request)

Third-party inspection (TPI)

14. Packing

Bundled or wooden box packing

HDG bolts packed with separators

Proper tagging & marking

Offered Product

C Plate Welded Foundation Bolt

Since 2013, LG Industries, Ahmedabad, India, Has Been A Trusted Manufacturer And Supplier Of C Plate Welded Foundation Bolts, Providing Reliable Fastening Solutions For Industrial, Construction, And Infrastructure Projects. Designed For Enhanced Stability, Superior Load-bearing Capacity, And Long-lasting Performance, These Bolts Are Ideal For Heavy Engineering, Power Plants, Petrochemical, Oil & Gas, And Construction Applications.Our C Plate Welded Foundation Bolts Are Crafted From Pre... Read more
Related Updates

MS Plate Welded Foundation Bolt Faridabad

LG Industries Manufactures MS Plate Welded Foundation Bolt Is A Type Of Anchor Bolt Made From Mild Steel (MS), Designed With A Steel Plate Welded At One End To Provide Strong Anchorage In Concrete Foundations. These Bolts Are Widely Used For Fixing Structural Columns, Heavy Machinery, Towers, Refinery Structures, And Industrial Equipment.ConstructionManufactured From High-quality Mild Steel Round BarThreaded At The Top End (as Per ISO / IS Standards) For Nut And Washer FixingMS Plate Wel Continue

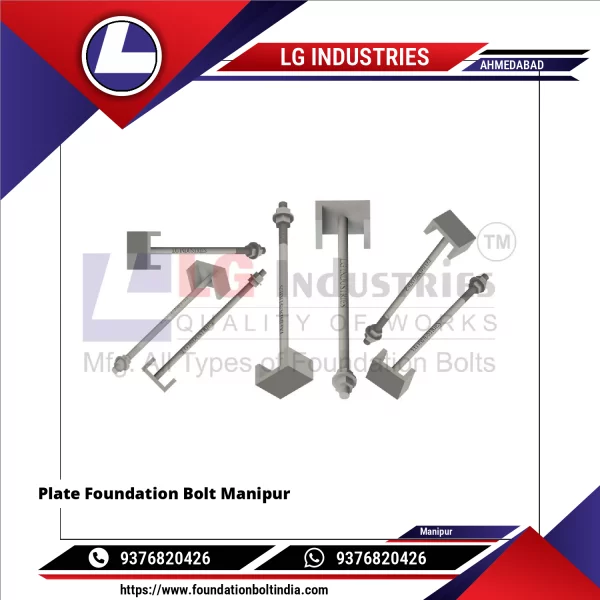

Plate Foundation Bolt Manipur
