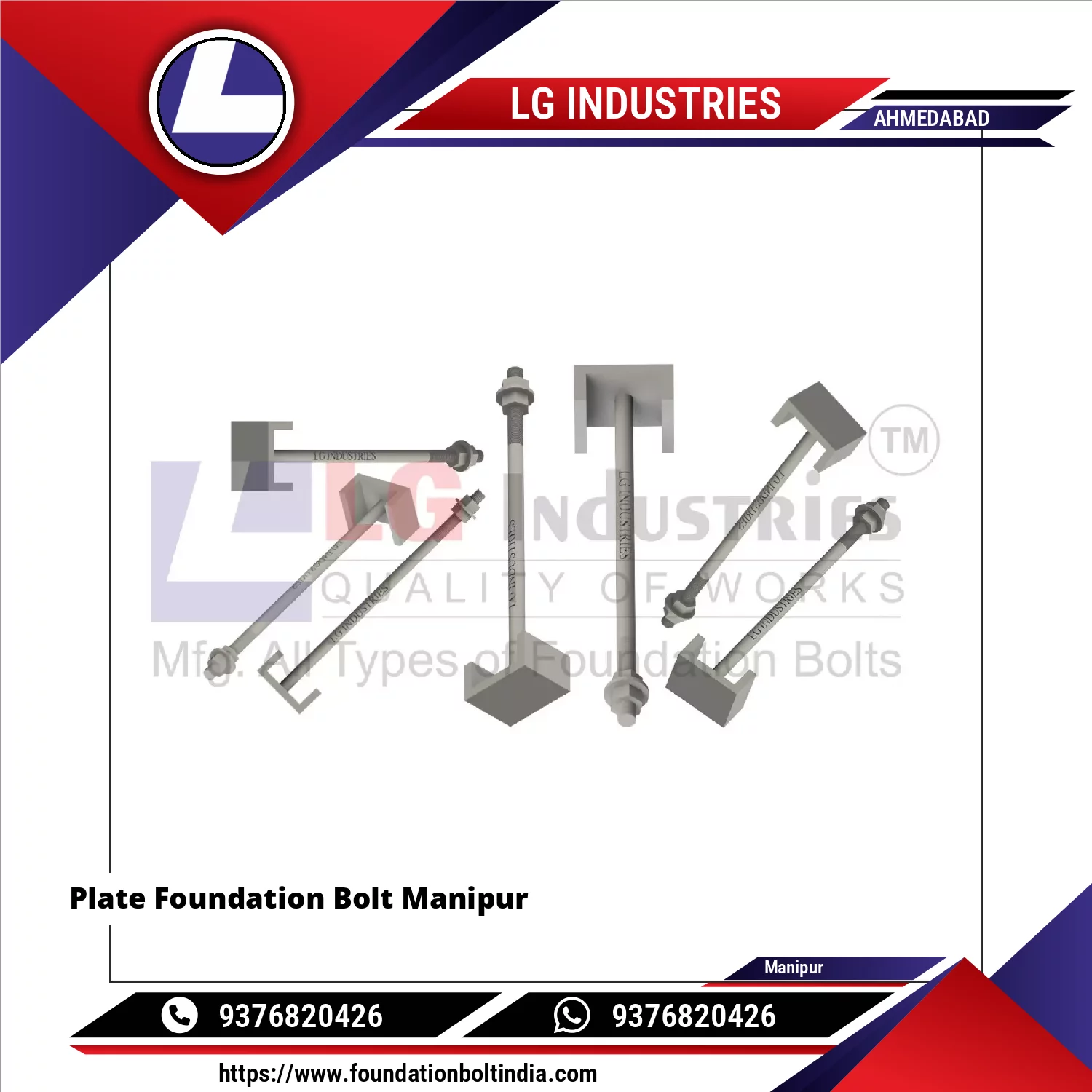

Plate Foundation Bolt producd by lg industries is a type of anchor bolt used to fix steel structures, columns, and heavy equipment to concrete foundations. It consists of a threaded steel rod with a mild steel (MS) anchor plate welded at the bottom, which provides superior anchorage and load distribution inside the concrete.
Key Features
Welded MS plate ensures strong mechanical anchoring
High pull-out and shear resistance
Accurate threading for easy installation and alignment
Suitable for heavy and dynamic loads
Construction Details
Bolt: Threaded round bar / stud
Anchor: Square or rectangular MS plate welded at one end
Top: Threaded with double nuts and washers
Plate thickness and size as per load requirement
Material & Finish
Material: MS, EN8, EN19, High Tensile Steel
Finish: Black finish, Hot Dip Galvanized (HDG), Zinc plated
Manufacturing as per IS / ASTM standards
Applications
Steel columns & base plates
PEB structures and industrial sheds
Power plants, refineries, cement & steel plants
Heavy machinery and equipment foundations
LG Industries Manufactures Plate Welded Foundation Bolt Is A Heavy-duty Anchoring Fastener Used To Securely Fix Structural Members, Machinery, Or Equipment To Concrete Foundations. It Consists Of A Threaded Bolt Or Rod With A Steel Plate Welded At One End, Which Is Embedded Into Concrete During Foundation Casting.The Welded Plate Acts As An Anchor, Providing High Resistance Against Pull-out, Uplift, And Shear Forces. This Design Ensures Superior Load Distribution And Long-term Stability, Espec Continue
LG Industries Manufactures MS Plate Welded Foundation Bolt Is A Type Of Anchor Bolt Made From Mild Steel (MS), Designed With A Steel Plate Welded At One End To Provide Strong Anchorage In Concrete Foundations. These Bolts Are Widely Used For Fixing Structural Columns, Heavy Machinery, Towers, Refinery Structures, And Industrial Equipment.ConstructionManufactured From High-quality Mild Steel Round BarThreaded At The Top End (as Per ISO / IS Standards) For Nut And Washer FixingMS Plate Wel Continue
Foundation Bolt / Anchor Bolt Manufactured By LG Industries2. Standards & CodesIS: IS 5624, IS 1367, IS 800ASTM: ASTM F1554 (Grades 36 / 55 / 105), ASTM A307DIN: DIN 529BS: BS 7419 (Manufactured As Per Customer Drawing Or Approved Standard)3. Types AvailableL Type Foundation BoltJ Type Foundation BoltStraight Foundation BoltPlate Welded Foundation BoltDouble Plate Foundation BoltEye Foundation BoltT-Type Foundation BoltAnchor Bolt With Stiffener PlateChemical / Continue
