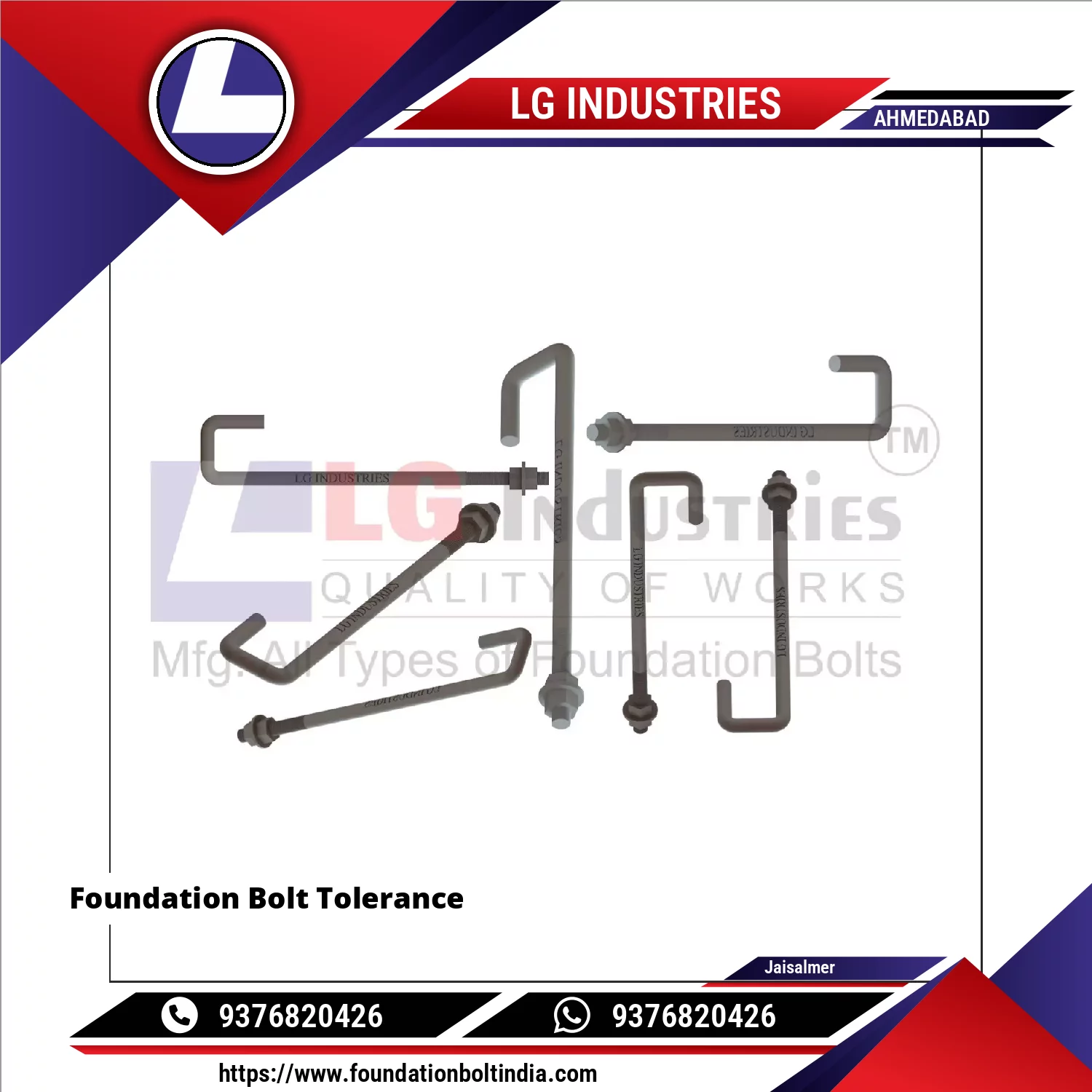

1. Bolt Diameter Tolerance
(As per IS / ISO manufacturing practice)
2. Bolt Length Tolerance
| Bolt Length | Tolerance |
|---|---|
| Up to 500 mm | ±2 mm |
| 500 – 1500 mm | ±3 mm |
| Above 1500 mm | ±5 mm |
3. Thread Tolerance
Metric Threads: 6g (external) as per ISO 965 / IS 4218
UNC / UNF Threads: 2A class
Thread Length: ±2 mm
4. Projection Above Concrete
| Bolt Diameter | Tolerance |
|---|---|
| M12 – M24 | ±5 mm |
| M27 – M48 | ±8 mm |
| Above M48 | ±10 mm |
5. Bolt Center-to-Center (Position) Tolerance
| Application | Tolerance |
|---|---|
| Building steel columns | ±3 mm |
| Heavy machinery base | ±2 mm |
| Towers / cranes | ±2 mm |
| General civil works | ±5 mm |
6. Verticality (Plumbness)
Maximum deviation: 1 in 100
Example: For 1000 mm bolt length → max deviation 10 mm
7. Bent Portion Tolerance (L / J Type)
Bend angle: ±2°
Bend radius: As per standard or drawing (±3 mm)
8. Plate Welded Bolt Tolerance
Plate size: ±2 mm
Plate thickness: ±0.5 mm
Plate squareness: ±1 mm
Weld alignment: ±2 mm
9. Galvanizing Allowance
Diameter increase after HDG: +0.3 to +0.6 mm
Threads generally over-tapped or chased after galvanizing
