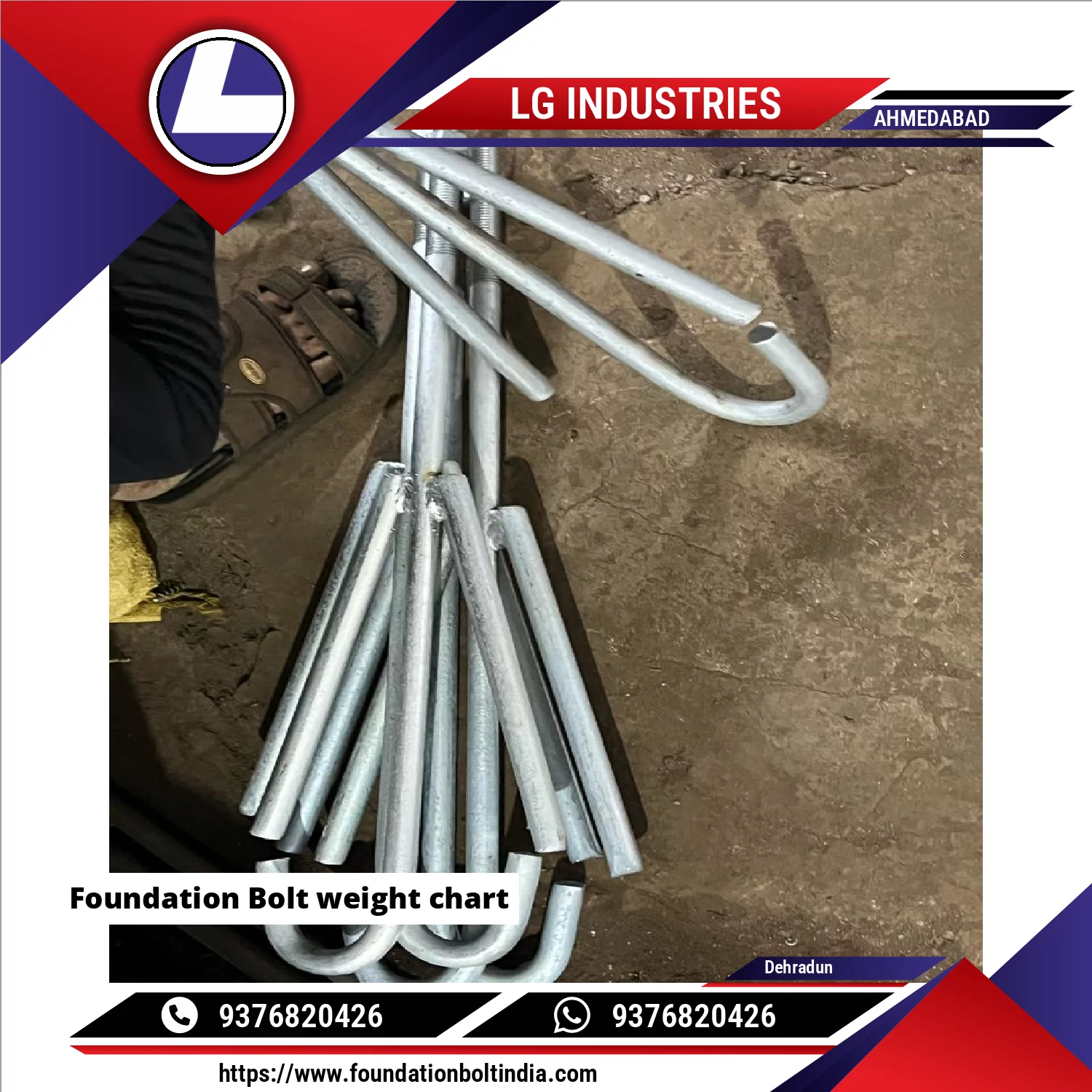

| Bolt Diameter | Dia (mm) | Weight (kg/m) |
|---|---|---|
| M12 | 12 | 0.89 |
| M16 | 16 | 1.58 |
| M20 | 20 | 2.47 |
| M24 | 24 | 3.55 |
| M27 | 27 | 4.49 |
| M30 | 30 | 5.55 |
| M36 | 36 | 7.99 |
| M42 | 42 | 10.88 |
| M48 | 48 | 14.22 |
| M52 | 52 | 16.63 |
| M56 | 56 | 19.35 |
| M60 | 60 | 22.20 |
| M64 | 64 | 25.30 |
| M72 | 72 | 32.00 |
| M76 | 76 | 35.30 |
| M80 | 80 | 39.50 |
| M90 | 90 | 49.90 |
| M100 | 100 | 61.60 |
Formula:
Weight (kg)=D2162×L\text{Weight (kg)} = \frac{D^2}{162} \times LWeight (kg)=162D2×L
Where:
D = Diameter in mm
L = Length in meters
LG Industries our company manufactures Foundation Bolts
Chemical Grouting For Foundation Bolts Is A Method Used To Fix Anchor / Foundation Bolts Into Concrete, Stone, Or Masonry Using A High-strength Chemical Adhesive Instead Of Conventional Cement Grout. It Is Commonly Used Where High Load Capacity, Fast Installation, Or Retrofit Fixing Is Required. LG Industries Manufactures Foundation Bolt.What Is Chemical Grouting?Chemical Grouting Involves Injecting A Resin-based Adhesive (epoxy, Polyester, Or Vinyl Ester) Into A Drilled Hole, Then Inserting Continue
LG Industries Produces Double Plate Foundation Bolt Is A Heavy-duty Anchor Bolt Designed For High-load And Critical Structural Applications. It Consists Of A Threaded Steel Rod With Two MS Anchor Plates Welded At The Bottom, Providing Enhanced Anchorage, Superior Load Distribution, And High Resistance To Pull-out And Shear Forces.Key FeaturesTwo Welded MS Plates For Maximum Anchoring StrengthExcellent Pull-out, Shear, And Vibration ResistanceIdeal For Heavy And Dynamic Load ConditionsA Continue
Double Plate Foundation Bolts Manufactured By LG Industries Are Heavy-duty Anchor Bolts Designed For Applications Requiring High Pull-out Resistance, Superior Load Distribution, And Enhanced Stability. These Bolts Are Widely Used In Tower Crane Foundations, Heavy Machinery Bases, Steel Structures, Power Plants, And Industrial Projects Where Very High Loads And Vibration Are Involved.Construction & DesignA Double Plate Foundation Bolt Consists Of A Straight Threaded Rod With Two Anchor Pl Continue
