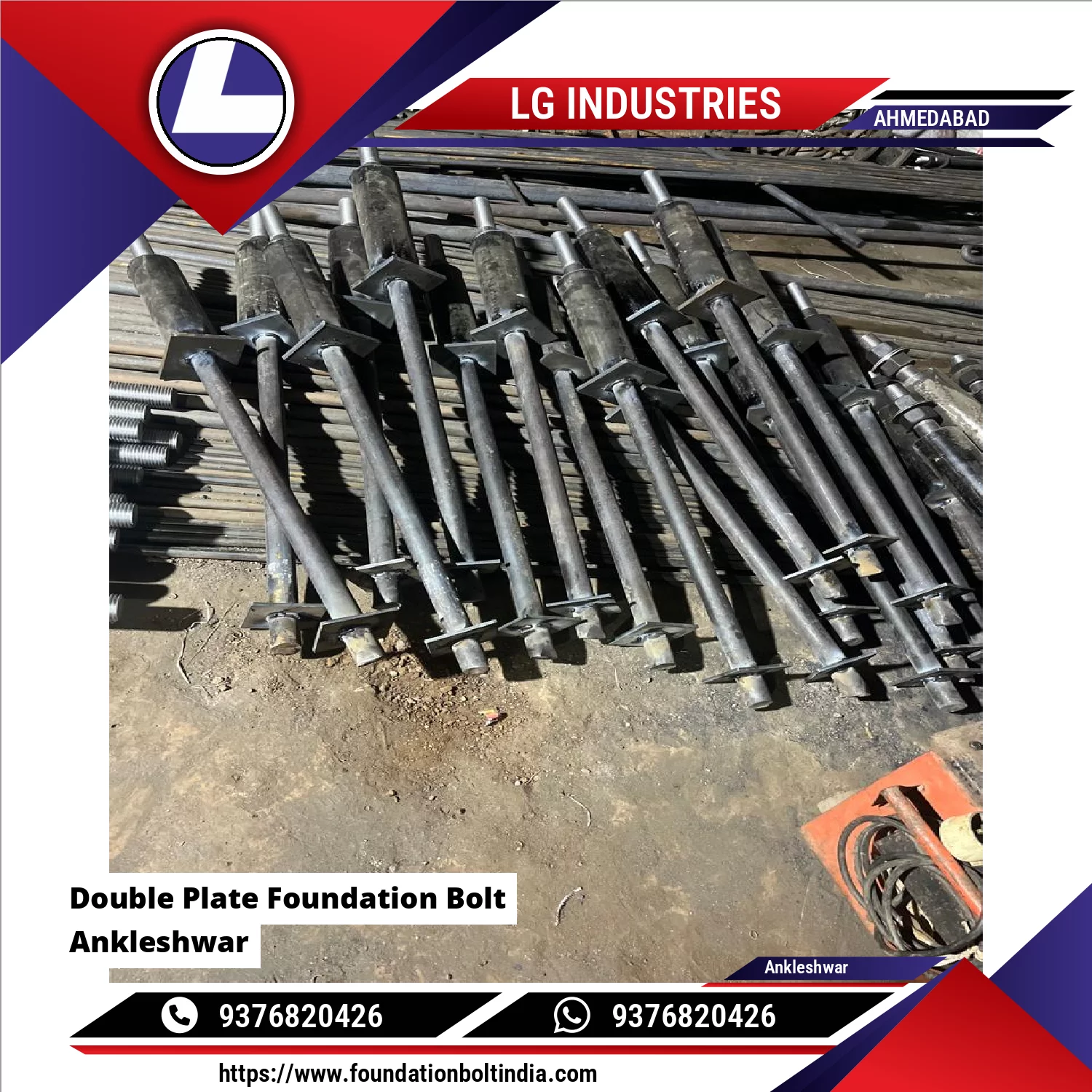

Double Plate Foundation Bolts manufactured by LG Industries are heavy-duty anchor bolts designed for applications requiring high pull-out resistance, superior load distribution, and enhanced stability. These bolts are widely used in tower crane foundations, heavy machinery bases, steel structures, power plants, and industrial projects where very high loads and vibration are involved.
Construction & Design
A Double Plate Foundation Bolt consists of a straight threaded rod with two anchor plates welded at the embedded end. The plates act as mechanical anchors, increasing the bearing area within concrete and preventing pull-out under extreme tensile and dynamic loads. The top threaded portion remains above the concrete for fastening with heavy hex nuts and washers.
Material
Mild Steel (IS 2062)
High Tensile Steel (IS 1367 / ASTM F1554)
EN8 / EN19 (as per load requirement)
Surface Finish
Black / Self Finish
Hot Dip Galvanized (HDG) – recommended for outdoor & crane foundations
Zinc Plated / Epoxy Coated (on request)
Key Features
Double anchorage plates for maximum holding strength
Excellent resistance to uplift, shear, and fatigue loads
Uniform load transfer to concrete foundation
Ideal for dynamic and heavy-duty installations
Long service life with corrosion protection
LG Industries Produces Double Plate Foundation Bolt Is A Heavy-duty Anchor Bolt Designed For High-load And Critical Structural Applications. It Consists Of A Threaded Steel Rod With Two MS Anchor Plates Welded At The Bottom, Providing Enhanced Anchorage, Superior Load Distribution, And High Resistance To Pull-out And Shear Forces.Key FeaturesTwo Welded MS Plates For Maximum Anchoring StrengthExcellent Pull-out, Shear, And Vibration ResistanceIdeal For Heavy And Dynamic Load ConditionsA Continue

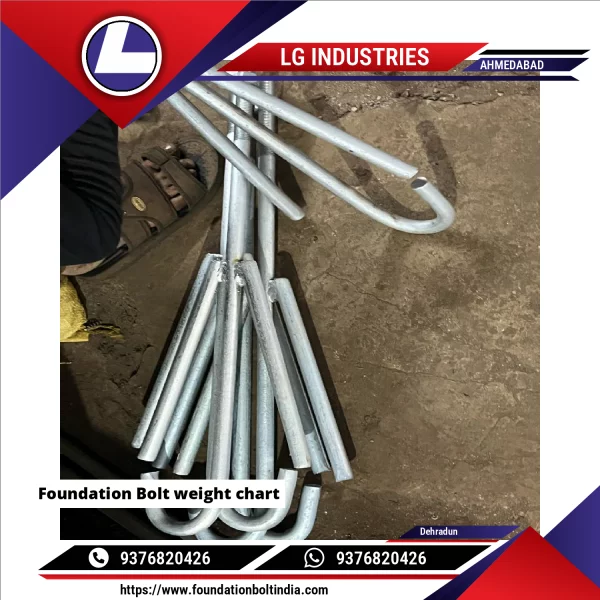

Foundation Bolt Weight Chart (kg Per Meter)Bolt DiameterDia (mm)Weight (kg/m)M12120.89M16161.58M20202.47M24243.55M27274.49M30305.55M36367.99M424210.88M484814.22M525216.63M565619.35M606022.20M646425.30M727232.00M767635.30M808039.50M909049.90M10010061.60📐 How To Calculate Bolt WeightFormula: Continue
