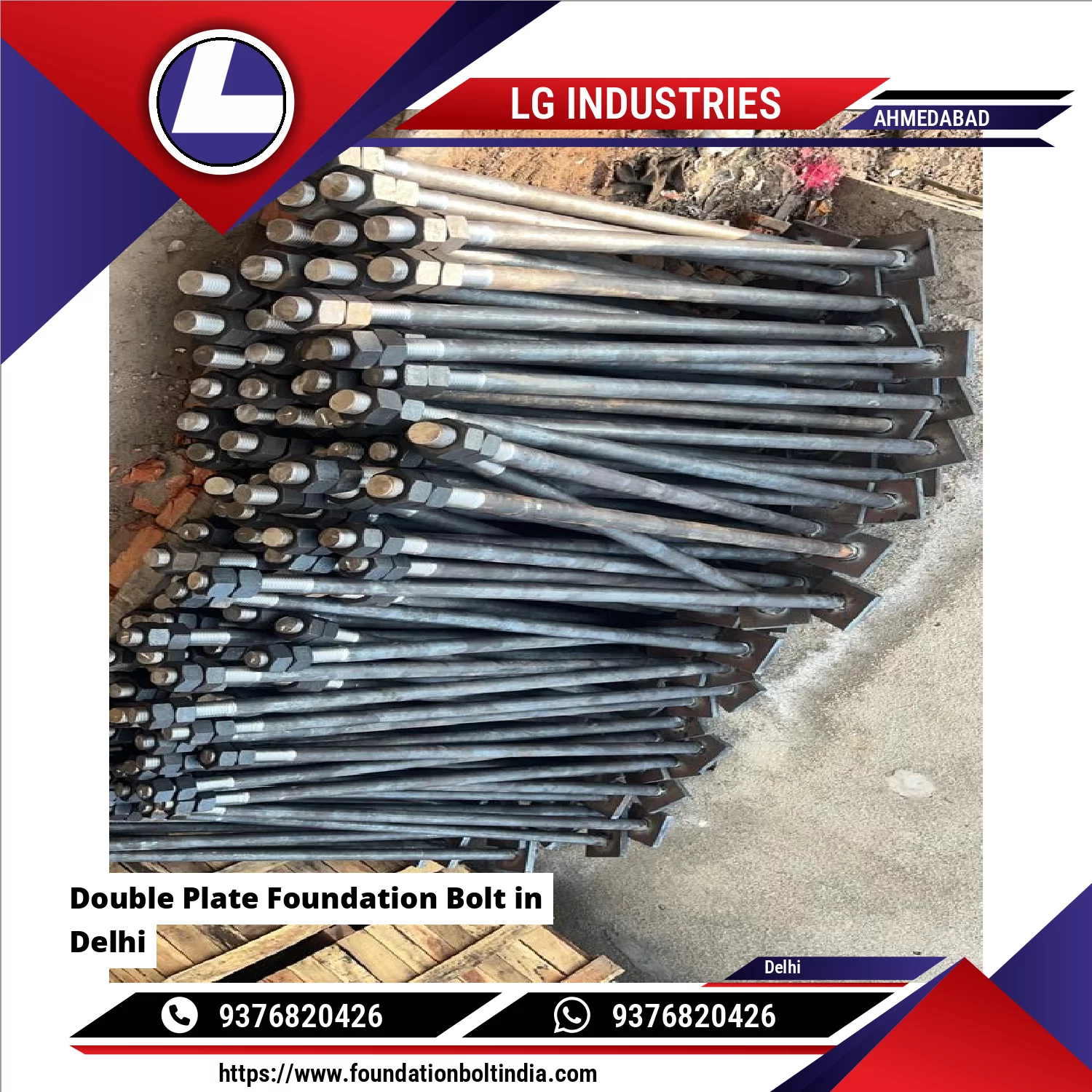

LG Industries produces Double Plate Foundation Bolt is a heavy-duty anchor bolt designed for high-load and critical structural applications. It consists of a threaded steel rod with two MS anchor plates welded at the bottom, providing enhanced anchorage, superior load distribution, and high resistance to pull-out and shear forces.
Key Features
Two welded MS plates for maximum anchoring strength
Excellent pull-out, shear, and vibration resistance
Ideal for heavy and dynamic load conditions
Accurate threading for proper leveling and alignment
Construction Details
Bolt: High-strength threaded rod / round bar
Anchor: Double square or rectangular MS plates welded at the embedded end
Top: Threaded with nuts and washers
Plate size & thickness customized as per structural load
Material & Finish
Material: MS, EN8, EN19, High Tensile Steel
Finish: Black finish, Hot Dip Galvanized (HDG), Zinc plated
Manufactured in accordance with IS / ASTM standards
Applications
Refineries and petrochemical plants
Power plants and heavy industrial projects
Cement plants and steel plants
Heavy equipment, reactors, and base frames
