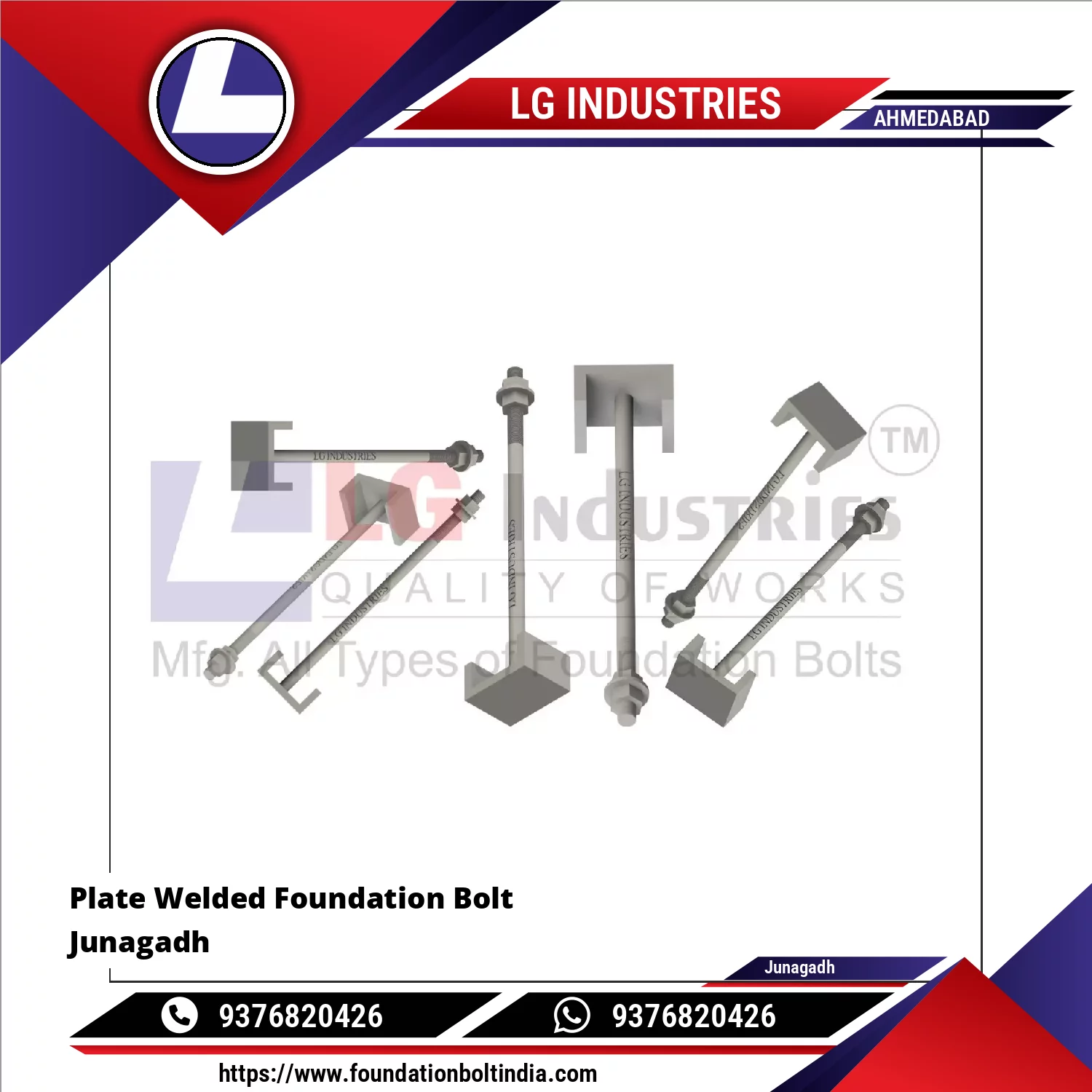

Plate Welded Foundation Bolt consists of a threaded rod or round bar with a square or rectangular MS plate welded at the bottom. When embedded in concrete, the welded plate acts as an anchor, preventing uplift, rotation, and slippage under heavy loads. The exposed threaded portion is used to secure base plates with nuts and washers. LG Industries manufactures plate weld foundation bolts.
Key Features
Welded anchor plate for superior anchorage
High load-bearing and pull-out resistance
Suitable for static and dynamic loads
Can be customized in length, diameter, and plate size
Available in plain, zinc plated, or hot-dip galvanized finish
Materials
Mild Steel (IS 2062)
High Tensile Steel (EN 8 / EN 19)
Stainless Steel (SS 304 / SS 316 – on request)
Typical Specifications
Diameter: M12 to M64 (or as per drawing)
Length: 300 mm to 3000 mm
Plate thickness: 6 mm to 25 mm
Thread: Metric / UNC / UNF
Finish: Black, Zinc Plated, HDG
