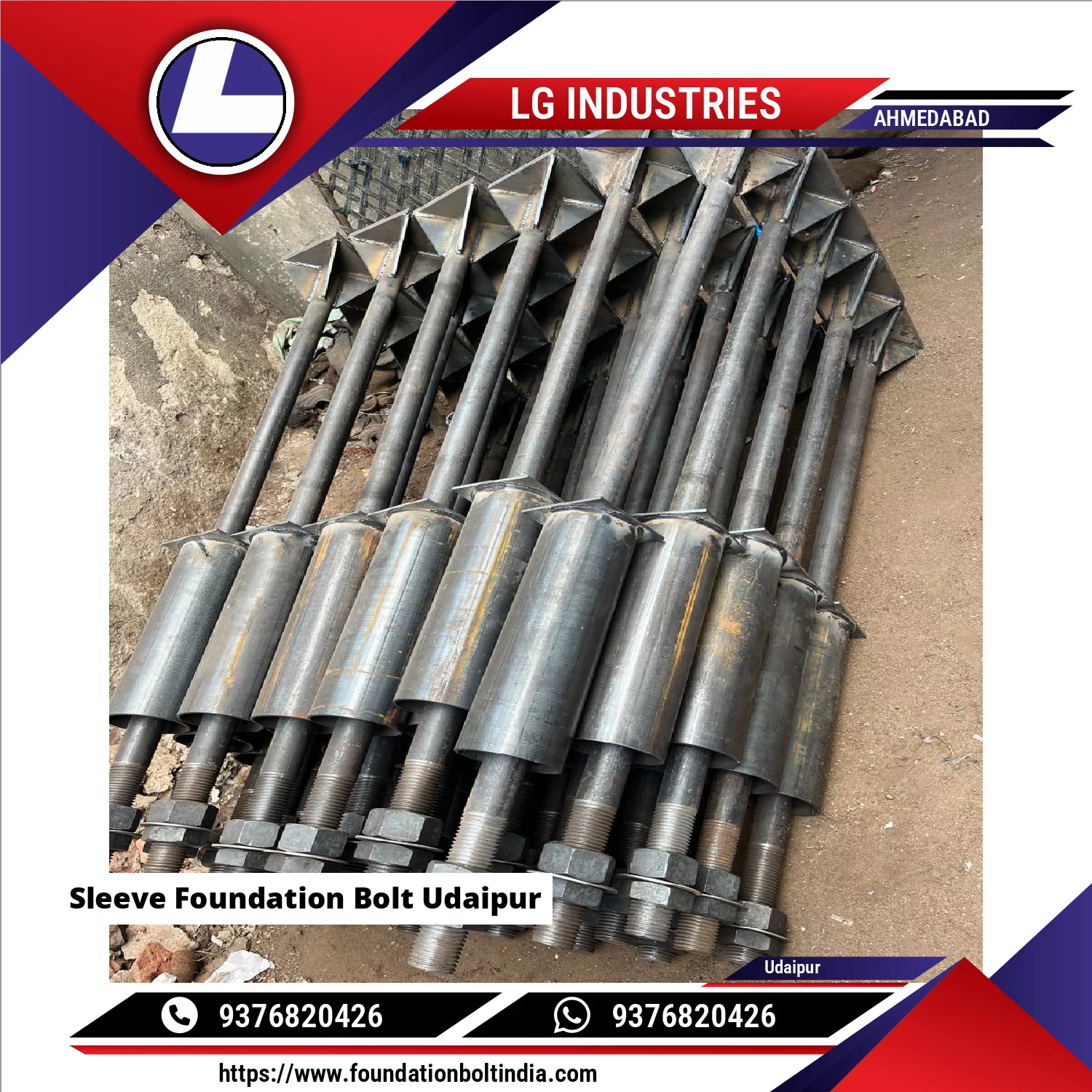

Sleeve Foundation Bolt produce by LG Industries is a heavy-duty anchoring bolt used to fix machines, steel columns, and structural base plates to concrete foundations. It consists of a threaded bolt placed inside a hollow sleeve (pipe) that is embedded in concrete, allowing positional adjustment before final tightening.
Key Components
Threaded Bolt / Stud: Provides the clamping force.
Sleeve (Pipe): Creates a clearance around the bolt for alignment and grouting.
Anchor Plate / Hook / Nut (at bottom): Prevents pull-out from concrete.
Top Nuts & Washers: Used to secure the base plate or equipment.
How It Works
The sleeve is cast into the concrete foundation.
After concrete curing, the bolt can be adjusted within the sleeve.
Grout is filled in the sleeve (if required), and the bolt is tightened to lock the structure in place.
Features & Advantages
Allows accurate alignment after concreting
High load-bearing capacity
Suitable for vibration-prone machinery
Available in MS, high-tensile steel, galvanized or stainless steel
Customizable in diameter and length
Applications
Heavy machinery foundations
Steel structures and columns
Power plants, industrial sheds, and equipment bases
Sleeve Foundation Bolt Manufactured By LG Industries Is A Type Of Mechanical Anchor Bolt Used To Fix Steel Structures, Base Plates, Handrails, And Equipment Into Concrete Or Masonry. It Consists Of A Threaded Bolt Combined With An Expandable Metal Sleeve That Grips The Concrete When Tightened.Design & Working PrincipleMade Of A Threaded Bolt, Expansion Sleeve, Nut, And Washer.When The Nut Is Tightened, The Bolt Pulls Up, Causing The Sleeve To Expand Outward.The Expanded Sleeve Create Continue
LG Industries Manufacturers Sleeve Foundation Bolt (sometimes Also Called A Sleeve Anchor Or Grouted Foundation Bolt) Is A Type Of Foundation Fastener Used To Anchor Structures, Machinery, Or Equipment To Concrete Foundations. Instead Of Being A Simple Bolt Cast Into Concrete, It Includes A Sleeve That Allows For Positioning And Secure Anchorage — Especially Useful In Heavy-duty And Adjustable Installations. Main Bolt/Rod: A Threaded Rod Or Bolt, Usually Made Of High-strength Steel. Continue
Secure Anchoring Solution For Heavy StructuresWe Provide The Best Reliable Anchoring For Machinery, Structural Supports, And Industrial Installations With Dependable Holding Strength And Flexible Construction, Sleeve Foundation Bolts Help Maintain Structural Integrity, Trim Maintenance RequirementsApplications:Structural Steel Column FixationIndustrial Sheds And Factory InstallationsPower Plants And Infrastructure ProjectsConveyor Systems And Mechanical AssembliesConstructi Continue
