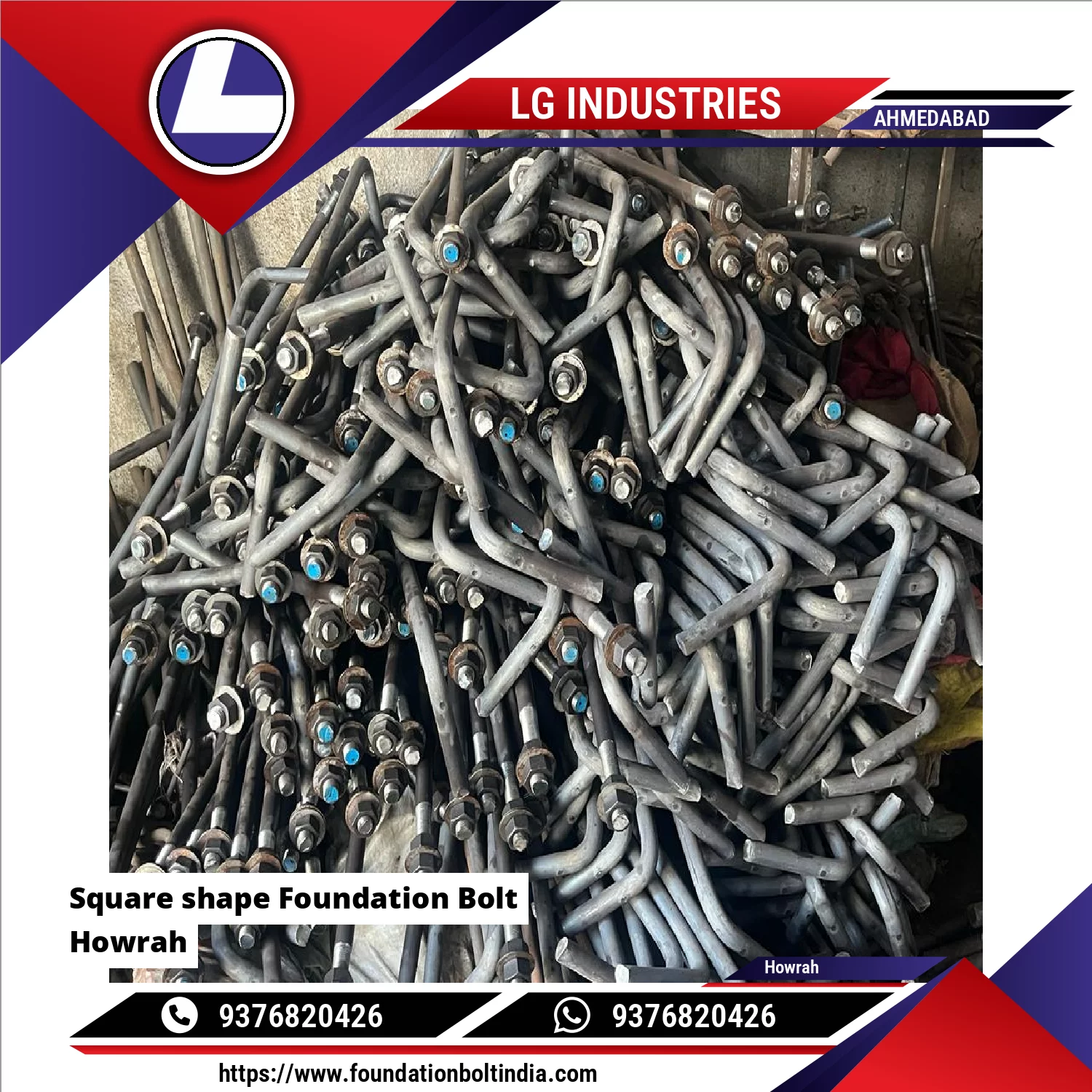

LG Industries manufactures Square Shape Foundation Bolt is a type of anchor bolt used to fix structural steel members, columns, and heavy equipment to concrete foundations. It is characterized by a square section or square anchor arrangement at the embedded end, which provides high resistance against pull-out and rotation.
Shape: Straight round or square shank with a square plate / square bend / square washer at the embedded end
Threading: Threaded on the top end to accommodate nut and washer
Anchor Mechanism: Square shape acts as a mechanical lock inside concrete
Square Plate Foundation Bolt – Straight bolt with a welded square anchor plate at the bottom
Square Bend Foundation Bolt – Bolt bent into a square or rectangular shape at the embedded end
Square Head Foundation Bolt – Square head embedded in concrete to prevent rotation
Material: • Mild Steel (MS) • High Tensile Steel (8.8 / 10.9)
Surface Finish: • Plain • Hot-dip galvanized (recommended for outdoor use) • Zinc plated
Foundation Bolt Tolerance1. Bolt Diameter Tolerance(As Per IS / ISO Manufacturing Practice)2. Bolt Length ToleranceBolt LengthToleranceUp To 500 Mm±2 Mm500 – 1500 Mm±3 MmAbove 1500 Mm±5 Mm3. Thread ToleranceMetric Threads: 6g (external) As Per ISO 965 / IS 4218UNC / UNF Threads: 2A ClassThread Length: ±2 Mm4. Projection Above ConcreteBolt DiameterToleranceM12 – M24±5 M Continue
Foundation Bolt manufactured By Lg Industries Is A High-strength Fastening Component Used To Anchor Steel Structures, Columns, And Heavy Machinery Securely To Concrete Foundations. It Plays A Critical Role In Transferring Loads From The Structure To The Foundation, Ensuring Stability, Alignment, And Long-term Safety.Key FeaturesDesigned To Withstand Tensile, Shear, And Vibrational LoadsStrong Anchorage Through Bent Ends, Welded Plates, Or Chemical FixingPrecision Threading For Accur Continue
LG Industries Manufactures Square Foundation Bolt Is A Type Of Heavy-duty Anchor Bolt Used To Secure Structural Members, Machinery, And Base Plates To Concrete Foundations. It Features A Square-shaped Anchor Plate Or Square Nut At The Embedded End, Which Provides Enhanced Resistance Against Pull-out And Rotation Once The Concrete Sets.This Design Ensures Strong Anchorage And Effective Load Transfer From The Structure To The Foundation, Making It Ideal For Applications Requiring High Stability Continue
